Article: UZS612B
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | UZS612B |
| Product ID: | 2CPX031139R9999 |
| EAN: | 4011617311393 |
| Catalog Description: | UZS612B Enclosure accessories |

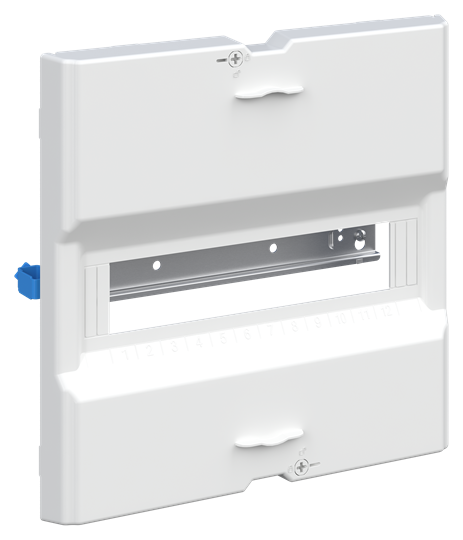

| Long Description: | Project phases delivery, suitable for UK61.., as a installation kit, with Plastic cover, device carrier with removable DIN rails, and modular N/PE Quick terminlas |
| |
| Product Name: | Enclosure accessories |
| Number of Rows: | 1 |
| Accessory Type: | project kit |
| Configuration Type: | DIN frame-cover-terminlas |
| Enclosure Type: | Enclosure accessories |
| Material: | Other |
| DIN Place Units: | 12 |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | White |
| Terminal Type: | Quick-Terminal |
| |
| Degree of Protection: | IP2XC |
| |
| Product Net Width: | 306 mm |
| Product Net Height: | 296 mm |
| Product Net Depth / Length: | 34 mm |
| Product Net Weight: | 0.557 kg |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 312.000 mm |
| Package Level 1 Height: | 299.000 mm |
| Package Level 1 Depth / Length: | 33.000 mm |
| Package Level 1 Gross Weight: | 0.579 kg |
| Package Level 1 EAN: | 4011617311393 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CPC129380M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000001C0101 |
| 2CPC000002C0101 | |
| 2CPC000003B0101 | |
| Instructions and Manuals: | 2CPC129380M5601 |
| |
| ETIM 6: | EC002625 - Mounting accessories (switchgear cabinet) |
| ETIM 7: | EC002625 - Mounting accessories (switchgear cabinet) |
| ETIM 8: | EC002625 - Mounting accessories (enclosure/cabinet) |
| EPLAN Catalog Tree: | Mechanics / Housings / Accessories |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85371098 |
| Object Classification Code: | U |
