KS4206 Measurement and metering transformer cabinet
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | KS4206 |
| Product ID: | 2CPX032782R9999 |
| EAN: | 4011617327820 |
| Catalog Description: | KS4206 Measurement and metering transformer cabinet |

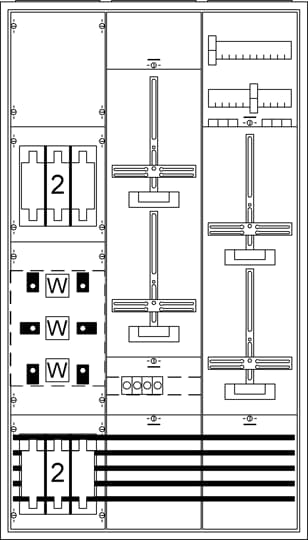

| Long Description: | Measurement and metering transformer cabinet, series A, fully assembled cabinet, with Metering cross, for the internal use, class of protection II (double insulated), degree of protection IP43, applicable standards: EN 61439-1, rated current 250 A, powder-coated, in RAL 9016, double door, dimensions in mm (H x W x D): 1350 x 800 x 215, Metering module pre-wired, Earthing system TN-S, 5-pole, net side compartment, meter space: with busbar, Number of meter spaces single tariff 2, Number of SG spaces 1, Number of transformer meter spaces 1, net side compartment, meter space: with busbar, Metering wiring, voltage path Fuse base element D01/3-pole and D01/1-pole, Secondary wiring current Wiring set H07V-U, Secondary wiring voltage Wiring set H07V-U, busbar system Cu busbars 2 x 12 x 5 mm 5-pole, parting point before the current transformer Fuse base element NH2/400 A, parting point after the current transformer Bottompart 1 x 3 x NH2/400 A with connection screws, primary wiring L1-L3, N 120 qmm, PE 95 qmm, Connection N+PE (M12), Grid unit 9 GU, Overall height 5, panel width 3, Space units 324, covers out of Plastic, Quick sealable connection, RAL 7035 |
| |
| Product Name: | Measurement and metering transformer cabinet |
| Rated Current (In): | 250 A |
| Number of Poles: | 5 |
| Number of Meter Cabinets: | 3 |
| Number of Meter Panels: | 2 |
| Number of Panel Widths: | 3 |
| Number of Rows: | 0 |
| Number of TSG Panels: | 1 |
| Lower Connection Space: | with Bus Bar 5 - pole |
| Enclosure Type: | Measurement and metering transformer cabinet |
| Enclosure Type of Height: | 5 |
| Mounting Type: | Surface mounted/partially recessed mounted |
| Door Type: | Double |
| Surface Finishing: | powder-coated |
| Housing Material: | Steel plate/plastic |
| Material: | Steel plate |
| DIN Place Units: | 324 |
| Model Number: | 1-story |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | Traffic white |
| |
| Degree of Protection: | IP31 |
| Protection Class: | Isolated |
| SCIP: | 29b0f087-c231-4008-b064-9a506b680daa Germany (DE) |
| Simplified SCIP: | 29b0f087-c231-4008-b064-9a506b680daa Germany (DE) |
| |
| Width in Number of Modular Spacings: | 36 |
| Product Net Width: | 800 mm |
| Product Net Height: | 1350 mm |
| Product Net Depth / Length: | 215 mm |
| Product Net Weight: | 66.034 kg |
| Built-In Depth (t2): | 215 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 850.000 mm |
| Package Level 1 Height: | 1460.000 mm |
| Package Level 1 Depth / Length: | 233.000 mm |
| Package Level 1 Gross Weight: | 68.675 kg |
| Package Level 1 EAN: | 4011617327820 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CPC101298M5601 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| Instructions and Manuals: | 2CPC101298M5601 |
| |
| ETIM 6: | EC000262 - Meter cabinet equipped |
| ETIM 7: | EC000262 - Meter cabinet equipped |
| ETIM 8: | EC000262 - Meter cabinet equipped |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85371098 |
| Object Classification Code: | U |
