Article: LS72M52B11
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | LS72M52B11 |
| Product ID: | 1SBV014352R1211 |
| EAN: | 3471522625991 |
| Catalog Description: | LS72M52B11 Limit Switch |

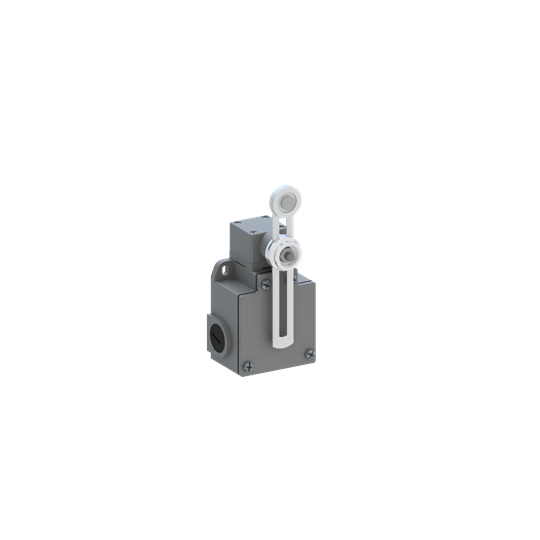

| Long Description: | LS72M52B11 is a 50 mm wide, reinforced Limit Switch made of zinc alloy material (Zamak), with 4 mounting holes at the top, 3 ISO M16x1.5 cable entries on the bottom and sides, adjustable rubber roller lever (Ø50 mm) actuator and 1 N.O + 1 N.C snap action (Zb type) contacts |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC141157C0202 |
| Instructions and Manuals: | 1SBC141157C0202 |
| |
| Product Net Width: | 59 mm |
| Product Net Height: | 127 mm |
| Product Net Depth / Length: | 52 mm |
| Product Net Weight: | 0.355 kg |
| |
| Conventional Free-air Thermal Current (Ith): | acc. to IEC 60947-5-1, q = 40 °C 10 A |
| Maximum Electrical Switching Frequency: | (AC-15) 3600 cycles per hour |
| (DC-13) 3600 cycles per hour | |
| Pilot Duty of Contact Elements acc. UL508: | A600 |
| Q600 | |
| Rated Impulse Withstand Voltage (Uimp): | 6 kV |
| Rated Operational Current AC-15 (Ie): | (230 V AC) 3.1 A |
| (400 V) NC 4 | |
| (24 V) 10 A | |
| (130 V) 5.5 A | |
| (240 V) 3 A | |
| Rated Insulation Voltage (Ui): | acc. to IEC 60947-5-1 and VDE 0110 (Gr. C) 500 V |
| acc. to UL/CSA 600 V | |
| Rated Operational Current DC-13 (Ie): | (24 V) 6 A |
| (110 V) 0.6 A | |
| (125 V) 0.55 A | |
| (250 V) 0.4 A | |
| Short-Circuit Protective Devices: | gG Type Fuses 10 A |
| |
| Ambient Air Temperature: | Operation -25 ... +70 °C |
| Storage -30 ... +80 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CQC Certificate: | CQC2004010305127663 |
| cUL Certificate: | 9AKK107991A7379 |
| Declaration of Conformity - CCC: | 2020980305001785 |
| Declaration of Conformity - CE: | 1SBD250883U1000 |
| Declaration of Conformity - UKCA: | 1SBD250886U1000 |
| Instructions and Manuals: | 1SBC141157C0202 |
| RoHS Information: | 1SBD250883U1000 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 140 mm |
| Package Level 1 Depth / Length: | 45 mm |
| Package Level 1 Height: | 70 mm |
| Package Level 1 Gross Weight: | 0.355 kg |
| Package Level 1 EAN: | 3471522625991 |
| |
| ETIM 4: | EC001829 - Position switch modular |
| ETIM 5: | EC001829 - Position switch modular |
| ETIM 6: | EC000030 - End switch |
| ETIM 7: | EC000030 - End switch |
| UNSPSC: | 39121500 |
