General Information | |
| Extended Product Type: | ESPE |
| Product ID: | GHV9250010V0001 |
| EAN: | 4013232701405 |

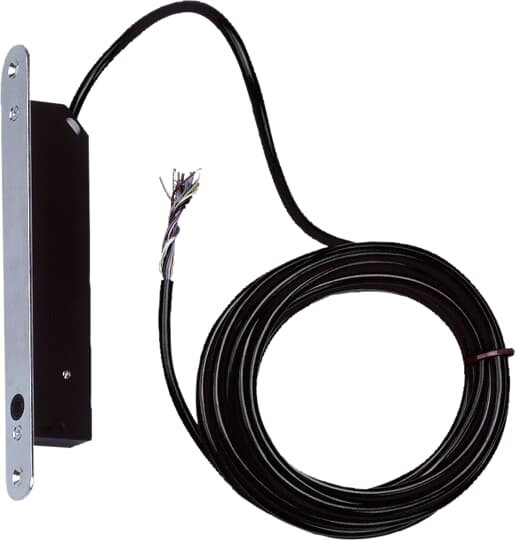

| Catalog Description: | ESPE Electromechanical Bolt Lock |
| Long Description: | Prevents access to the set area of an Intrusion Alarm Panel. The unit is mounted in the door frame. Only a single bore or the counterpart for the locking bolt in the door panel is required. Connectable to L240/BS SafeKey evaluation module. For surface mounting use AMSP or AMSE |
| |
| Product Name: | Conventional |
| Auxiliary Voltage AC/DC: | 12 V DC |
| Power Loss: | 1.38 W |
| Number of Outputs: | 0 |
| Mounting Type: | Built-in Installation |
| Built-on | |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| |
| Product Net Width: | 20 mm |
| Product Net Height: | 190 mm |
| Product Net Depth / Length: | 32 mm |
| Product Net Weight: | 0.491 kg |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 50 mm |
| Package Level 1 Height: | 150 mm |
| Package Level 1 Depth / Length: | 200 mm |
| Package Level 1 Gross Weight: | 0.55 kg |
| Package Level 1 EAN: | 4013232701405 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85311030 |
| Country of Origin: | Romania (RO) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK540216D2701 |
| Instructions and Manuals: | 2CDG941176P0002 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK2017-107260 |
| Instructions and Manuals: | 2CDG941176P0002 |
| |
| ETIM 6: | EC001526 - Switchgear for intrusion detection system |
| ETIM 7: | EC001526 - Switchgear for intrusion detection system |
| ETIM 8: | EC001526 - Switchgear for intrusion detection system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8531 10 30 |
| eClass: | V7.0 : 27399208 |
| Object Classification Code: | A |
