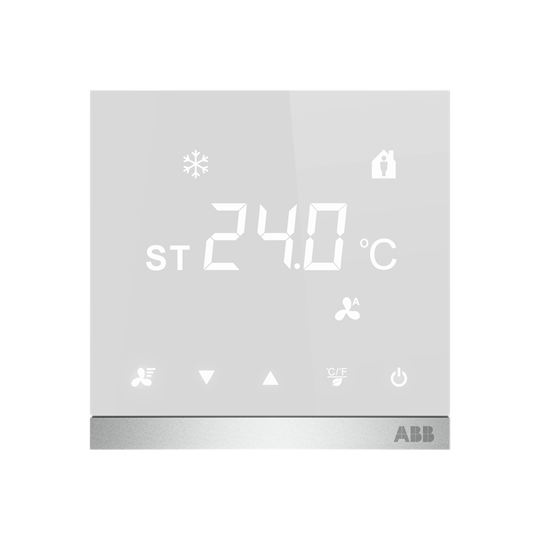

CAR/U4.1.1.1-84, ABB Caldion Fan Coil RTC, 2/4 pipe, On/Off, FM, White
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CAR/U4.1.1.1-84 |
| Product ID: | 2TAZ740010R0001 |
| EAN: | 6941195435021 |
| Catalog Description: | CAR/U4.1.1.1-84, ABB Caldion Fan Coil RTC, 2/4 pipe, On/Off, FM, White |
| Long Description: | ABB Caldion® Room Temperature Controller for fan coil units with 2 pipe, 2 pipe with electric heater or 4 pipe system, Flush Mounted, BS standard, Available for standalone function or as KNX device with integrated bus coupling unit, Build in temperature sensor, 2 x binary input for window, dewpoint, condensate alarm, integrated actuator output control for on/off or 0-10V valve and 3 x fan speed control. Dedicated capacitive touch RTC control button for intuitive control, mode operation and frameless design with large display. |
| |
| Product Name: | User Operation - Caldion |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 16.0 mm |
| Product Net Height: | 86.0 mm |
| Product Net Depth / Length: | 86.0 mm |
| Product Net Weight: | 250 g |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 97 mm |
| Package Level 1 Height: | 71 mm |
| Package Level 1 Depth / Length: | 106 mm |
| Package Level 1 Gross Weight: | 272.0 g |
| Package Level 1 EAN: | 6941195435021 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 9032899099 |
| Country of Origin: | China (CN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107680A0354 |
| Instructions and Manuals: | 9AKK107492A7829 |
| RoHS Information: | 9AKK107680A0354 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107492A7728 |
| Instructions and Manuals: | 9AKK107492A7829 |
| |
| ETIM 6: | EC001101 - Room temperature controller for bus system |
| ETIM 7: | EC001101 - Room temperature controller for bus system |
| ETIM 8: | EC001101 - Room temperature controller for bus system |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 9032899099 |
