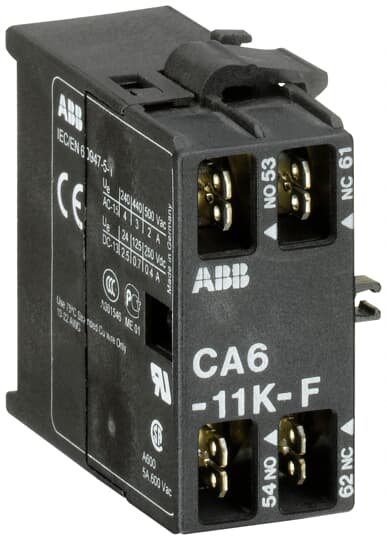

Article: CA6-11K-F
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CA6-11K-F |
| Product ID: | GJL1201318R0001 |
| EAN: | 4013614050985 |
| Catalog Description: | CA6-11K-F Auxiliary Contact |
| Long Description: | CA6-11K-F is an auxiliary contact for side with 2 auxiliary contact and flat pin connection. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100214C0202 |
| Instructions and Manuals: | 2CDC102047M6801 |
| Dimension Diagram: | GJL1200444F0001 |
| |
| Product Net Width: | 20.3 mm |
| Product Net Height: | 48.5 mm |
| Product Net Depth / Length: | 46.5 mm |
| Product Net Weight: | 0.025 kg |
| |
| Rated Operational Voltage: | Auxiliary Circuit 690 V AC |
| Auxiliary Circuit 250 V DC | |
| Rated Frequency (f): | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 690 V |
| Degree of Protection: | IP20 |
| Standards: | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 1 |
| Number of Main Contacts NC: | 0 |
| Number of Main Contacts NO: | 0 |
| Conventional Free-air Thermal Current (Ith): | Auxiliary Circuit 6 A |
| Product Name: | Auxiliary Contact |
| Suitable For: | K6-F |
| KC6-F | |
| Suitable for Product Class: | Mini Contactors |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Auxiliary Circuit 600 V AC/DC |
| Contact Rating UL/CSA: | A600 |
| |
| Ambient Air Temperature: | Operation -25 ... +55 °C |
| Storage -40 ... +80 °C | |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 15g |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5g / 5 ... 150 Hz |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | 1SAA938001-2001 |
| CQC Certificate: | CQC2003010304064035 |
| cURus Certificate: | cUL_E48139 |
| Declaration of Conformity - CCC: | 2020980304001309 |
| Declaration of Conformity - CE: | 1SAD938517-0001 |
| Declaration of Conformity - UKCA: | 1SAD938500-1001 |
| EAC Certificate: | 1SAA938002-2701 |
| Instructions and Manuals: | 2CDC102047M6801 |
| RMRS Certificate: | 1SAA938001-0704 |
| RoHS Information: | 1SAD938517-0001 |
| UL Certificate: | UL_E48139 |
| UR Certificate: | 1SAA938000-1801 |
| |
| Package Level 1 Width: | 112 mm |
| Package Level 1 Depth / Length: | 142 mm |
| Package Level 1 Height: | 62 mm |
| Package Level 1 Gross Weight: | 0.315 kg |
| Package Level 1 EAN: | 4013614412134 |
| Package Level 1 Units: | 10 piece |
| |
| Object Classification Code: | K |
| ETIM 4: | EC000041 - Auxiliary contact block |
| ETIM 5: | EC000041 - Auxiliary contact block |
| ETIM 6: | EC000041 - Auxiliary contact block |
| ETIM 7: | EC000041 - Auxiliary contact block |
| eClass: | V11.0 : 27371302 |
| UNSPSC: | 39121522 |
