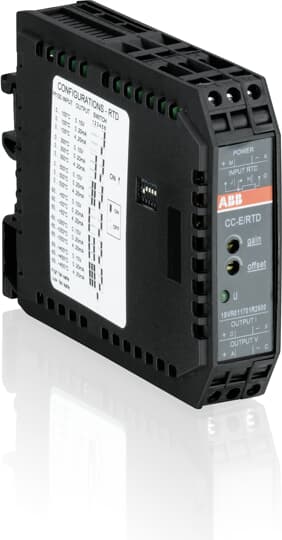

CC-E RTD/I Temp. converter, singlef. PT100 0-100°C / 4-20mA, 24VDC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | CC-E RTD/I |
| Product ID: | 1SVR011732R1300 |
| EAN: | 4013614351747 |
| Catalog Description: | CC-E RTD/I Temp. converter, singlef. PT100 0-100°C / 4-20mA, 24VDC |
| Long Description: | The CC-E RTD/I is a single-function temperature signal converter from the CC-E range. This converter, with 3-way electrical isolation, for RTD sensors (PT100, 2- or 3-wire connection), operates with a rated control supply voltage of 24 V DC. It provides an input temperature range of 0…100 °C and an output signal range of 4-20 mA. Applied supply voltage is displayed by a green LED. |
| |
| EAN: | 4013614351747 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85369095 |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 81 mm |
| Package Level 1 Depth / Length: | 27 mm |
| Package Level 1 Height: | 109 mm |
| Package Level 1 Gross Weight: | 0.1 kg |
| Package Level 1 EAN: | 4013614351747 |
| |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 75 mm |
| Product Net Depth / Length: | 107 mm |
| Product Net Weight: | 0.086 kg |
| |
| Function: | RTD sensor signals |
| Single-function | |
| Input Signal: | 0 ... 100 °C |
| Output Signal: | 4 ... 20 mA |
| Rated Control Supply Voltage (Us): | 24 V DC |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| cUL Certificate: | cUL508_E174460 |
| Data Sheet, Technical Information: | 2CDC110004C0210_05 |
| Declaration of Conformity - CE: | 1SVD981003-0001 |
| Environmental Information: | 1SAA981006-2402 |
| Instructions and Manuals: | 1SVC011700M9000 |
| RoHS Information: | 1SVD981003-0001 |
| UL Certificate: | UL508_E174460 |
| |
| Object Classification Code: | T |
| ETIM 4: | EC002653 - Isolation amplifier |
| ETIM 5: | EC002653 - Isolation amplifier |
| ETIM 6: | EC002653 - Isolation amplifier |
| ETIM 7: | EC002653 - Isolation amplifier |
| eClass: | V11.0 : 27210120 |
