Article: CEM7072T
Article: CEM7072T

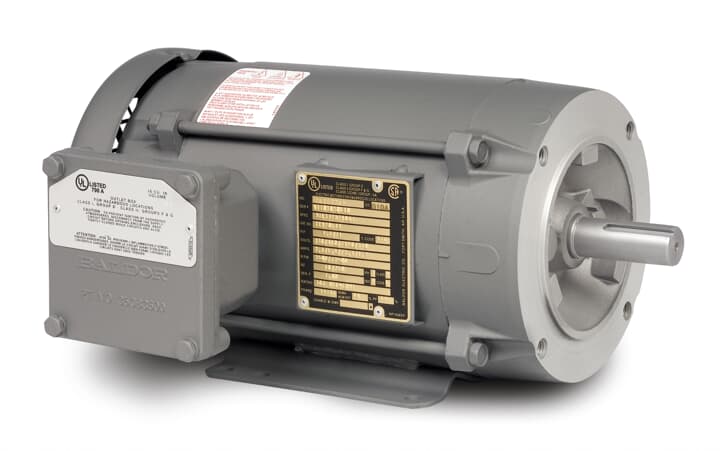

3.000 hp, 5.000 hp, 3450//2900 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 184TC, F1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Global Commercial Alias: | CEM7072T |
| Product ID: | 7BCEM7072T |
| ABB Type Designation: | 5//3HP,3450//2900RPM,3PH,60//50HZ,1 |
| Catalog Description: | 3.000 hp, 5.000 hp, 3450//2900 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 184TC, F1 |
| |
| ABB Type Designation: | 5//3HP,3450//2900RPM,3PH,60//50HZ,1 |
| Ambient Temperature: | 40 °C |
| Brake Present: | No |
| Brand / Label: | Baldor-Reliance |
| Catalog Number: | CEM7072T |
| Certification Agency: | CSA |
| UL | |
| Country of Origin: | United States (US) |
| Customs Tariff Number: | 85015220 |
| Design: | A |
| Dimension Diagram: | 36LYN020 |
| ETIM 7: | EC001851 - Electric motor |
| Efficiency Level: | IE3 |
| Not Regulated / Exempt | |
| Premium Efficiency (NEMA 12-12) |
| Current | Freq | Power | Speed | Voltage |
|---|---|---|---|---|
| 11.8 A | 60 Hz | 5 Hp | 3450 r/min | 230 V |
| 5.9 A | 60 Hz | 5 Hp | 3450 r/min | 460 V |
| 8.8 A | 50 Hz | 3 Hp | 2900 r/min | 190 V |
| 4.4 A | 50 Hz | 3 Hp | 2900 r/min | 380 V |
Explosion Proof Group Class: CLI GP D
CLII GP F,G
Explosion Protection: Explosion-proof
Frame Material: Steel
Frequency (f): 50 Hz
60 Hz
Global Commercial Alias: CEM7072T
Gross Weight: 45.400 kg
Horsepower Rating UL/CSA: 3.000 Hp
5.000 Hp
IDEA Granular Category Code (IGCC): 1328 >> Multi phase motor AC
Insulation Class: B
Invoice Description: 3.000 hp, 5.000 hp, 3450//2900 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 184TC, F1
Made To Order: No
Marketing Description: 3.000 hp, 5.000 hp, 3450//2900 RPM, 3PH, 230/460//190/380 V, 60//50 Hz, XPFC, 184TC, F1
Minimum Order Quantity: 0.000 piece
Motor Base Type: Rigid
Motor Frame Size: 184TC
NEMA Design Code: A
Number of Phases: 3
Number of Poles: 2
Number of Speeds: Single Speed
Order Multiple: 0.000 piece
Power Factor: 91 %
Product Name: -
Product Net Length: 18.86 in
Product Net Weight: 45.400 kg
Quote Only: No
Rated Current (In): 11.8 A
5.9 A
8.8 A
4.4 A
Rated Efficiency: 88.5 %
Rated Speed: 3,450 r/min
2,900 r/min
RoHS Information: RoHS Compliant
Selling Unit of Measure: piece
Service Factor: 1.00
Service Factor Percentage: 1.00 %
Shaft Diameter: 1.125 in
Standards: NEMA
Starting of Motor: Direct On Line
Stocked At (Warehouses): China
Alabama, United States
Alaska, United States
Temperature Class: T3C
Type of Duty: CONT
UNSPSC: 26101115
Voltage Rating: 460 V
380 V
230 V
190 V
