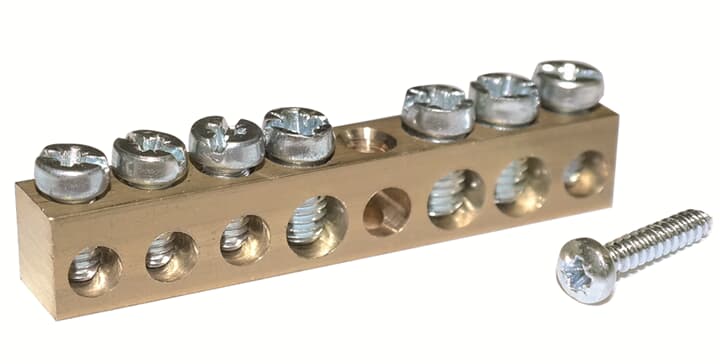

Article: BS 1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | BS 1 |
| Product ID: | 2CPX070155R9999 |
| EAN: | 4011617701552 |
| Catalog Description: | BS 1 Terminals |
| Long Description: | BS 1 Schiene zum Nachrüsten;BS 1 Schiene zum Nachrüsten |
| |
| Product Name: | Terminals |
| Rated Voltage (Ur): | 230 V |
| Rated Operational Voltage: | Maximum 230 V |
| Operational Voltage: | 230 V |
| Rated Current (In): | 63 A |
| Number of Poles: | 1 |
| Number of Clamp Positions: | 7 |
| Connection Type: | Screw |
| Enclosure Type: | Terminals |
| Mounting Type: | Direct mounting |
| Terminal Connection Type: | Side |
| Insulation Material: | None |
| Color: | Other |
| Rated Cross-Section: | 1 - Solid-Core 1.5...16 mm² |
| 2 - Fine-Strand with Cable End Sleeve 0.75...10 mm² | |
| 3 - Fine-Strand without Cable End Sleeve 0 mm² | |
| 4 - Multi-Wired 0 mm² | |
| |
| SCIP: | f4bebbff-1f4b-4f15-832a-5a521767413d Germany (DE) |
| Simplified SCIP: | f4bebbff-1f4b-4f15-832a-5a521767413d Germany (DE) |
| |
| Product Net Width: | 15 mm |
| Product Net Height: | 10 mm |
| Product Net Depth / Length: | 5 mm |
| Product Net Weight: | 0.022 kg |
| Product Net Length: | 54 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 140.000 mm |
| Package Level 1 Height: | 75.000 mm |
| Package Level 1 Depth / Length: | 155.000 mm |
| Package Level 1 Gross Weight: | 0.022 kg |
| Package Level 1 EAN: | 4011617701552 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 73269098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001284 - Single- and multi-pole terminal strip |
| ETIM 7: | EC001284 - Single- and multi-pole terminal strip |
| ETIM 8: | EC001284 - Single- and multi-pole terminal strip |
| EPLAN Catalog Tree: | Electrical engineering / Terminals / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 73269098 |
| Object Classification Code: | U |
