Article: BZH1600A-1P-BC-Right-STS
Article: BZH1600A-1P-BC-Right-STS

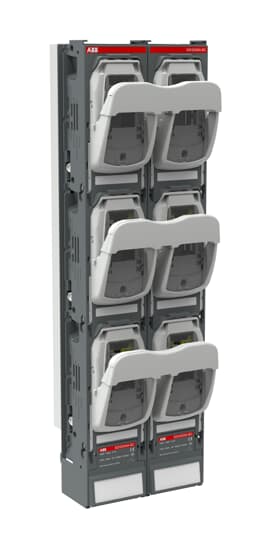

BZH1600A-1P-BC-Right-STS Buscoupler
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | BZH1600A-1P-BC-Right-STS |
| Product ID: | 1SEP622033R0001 |
| EAN: | 7025840094982 |
| Catalog Description: | BZH1600A-1P-BC-Right-STS Buscoupler |
| Long Description: | BZH1600A-1P-BC-Right-STS Buscoupler |
| |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Bulgaria (BG) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SEC312023D0201 |
| |
| Product Frame Size: | High |
| Product Net Width: | 199 mm |
| Product Net Height: | 662 mm |
| Product Net Depth / Length: | 252 mm |
| Product Net Weight: | 11.85 kg |
| |
| Rated Operational Current AC-21B (Ie): | (690 V) 1600 A |
| (500 V) 1600 A | |
| (400 V) 1600 A | |
| Conventional Free-air Thermal Current (Ith): | 1600 A |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Short-Circuit Making Capacity (Icm): | 30 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 30 kiloampere rms |
| Pollution Degree: | 3 |
| Handle Type: | 1P |
| Distance Between Phases: | 185 mm |
| Fuse Size: | Solid link |
| Standards: | IEC60947-3 |
| Number of Poles: | 3 |
| Degree of Protection: | Front IP30 |
| Terminal Type: | No Terminals |
| Tightening Torque: | 35 N·m |
| Mechanical Durability: | 500 cycle |
| Device Type Manager (DTM): | Buscoupler |
| Fuse Type: | Solid link |
| Electronic Fuse Monitoring: | No |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Declaration of Conformity - CE: | 1SEP500046P0001 |
| RoHS Information: | 9AKK107991A6284 |
| |
| Package Level 1 Units: | shrink-wrap 1 piece |
| Package Level 1 EAN: | 7025840094982 |
| |
| ETIM 4: | EC001040 - Fuse switch disconnector |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
