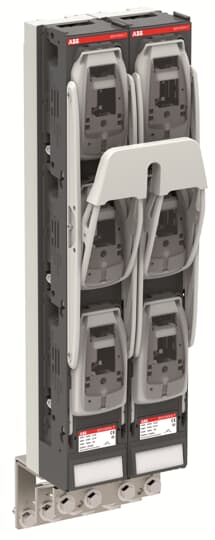

BZH1600A-T-3P-M12-TK Switch disconnector
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | BZH1600A-T-3P-M12-TK |
| Product ID: | 1SEP622025R0001 |
| EAN: | 3800161652868 |
| Catalog Description: | BZH1600A-T-3P-M12-TK Switch disconnector |
| Long Description: | Cu+ switch disconnectors are specially engineered to perform in surroundings with high ambient temperatures and are available as 1P and 3P variants. All Cu+ switch disconnectors have been tested and approved for performance exceeding the requirements of IEC60947-1 and IEC60947-3. Enabling use in ambient temperatures up to 55°C (131°F) without requiring derating, the switches can be applied with 100% of the rated current Ie. Cu+ switch disconnectors are available for 1000A – 2000A and are factory equipped with optimized fuse knives. InLine II Cu+ replaces the old range of SLBM and BSL switches 1:1. |
| |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Bulgaria (BG) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SEC312024B0201 |
| 1SEC312023D0201 | |
| 9AKK107680A8500 | |
| Instructions and Manuals: | 9AKK107680A5077 |
| Mechanical Drawings: | 9AKK107680A8041 |
| 9AKK107991A5722 | |
| 9AKK107991A5723 | |
| |
| Product Frame Size: | High |
| Product Net Width: | 199 mm |
| Product Net Height: | 775 mm |
| Product Net Depth / Length: | 222 mm |
| Product Net Weight: | 17.8 kg |
| |
| Rated Operational Current AC-21B (Ie): | (690 V) 1600 A |
| (500 V) 1600 A | |
| Rated Operational Current AC-22B (Ie): | (500 V) 1600 A |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 8 kV |
| Rated Insulation Voltage (Ui): | 1000 V |
| Rated Operational Voltage: | 690 V AC |
| Rated Short-time Withstand Current (Icw): | (730 V AC) 30 kiloampere rms |
| for 1 s 30 kiloampere rms | |
| Power Loss: | at Rated Load 395 W |
| Handle Type: | 3P |
| Distance Between Phases: | 185 mm |
| Fuse Size: | Solid link |
| Standards: | IEC60947-3 |
| Degree of Protection: | Front IP30 |
| Terminal Type: | Bolt |
| Device Type Manager (DTM): | Switch disconnector |
| Fuse Type: | NH |
| Electronic Fuse Monitoring: | No |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Declaration of Conformity - CE: | 1SEP500046P0001 |
| Instructions and Manuals: | 9AKK107680A5077 |
| RoHS Information: | 9AKK107991A6284 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 EAN: | 3800161652868 |
| |
| ETIM 4: | EC001040 - Fuse switch disconnector |
| ETIM 5: | EC001040 - Fuse switch disconnector |
| ETIM 6: | EC001040 - Fuse switch disconnector |
| ETIM 7: | EC001040 - Fuse switch disconnector |
| ETIM 8: | EC001040 - Fuse switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
