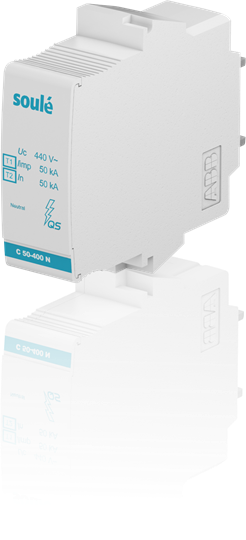

C BP 50-400 N Res QS Surge Protective Device
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | C BP 50-400 N Res QS |
| Product ID: | 2CTB415710R5600 |
| EAN: | 3660308525918 |
| Catalog Description: | C BP 50-400 N Res QS Surge Protective Device |
| Long Description: | C BP 50-400 N Res QS Surge Protective Device |
| |
| Standards: | IEC 61643-11 / EN 61643-11 |
| Product Name: | Surge Protective Device |
| Type of Low Voltage Distribution System: | TT |
| TN-S | |
| Suitable For: | To protect the systems against the transient overvoltage (lightning) |
| Nominal AC Voltage of the System (Uo): | 400 / 690 V |
| Voltage Rating DC: | 800 V |
| Voltage Protection Level ( Up): | (L-N) - kV |
| (N-PE) 1.9 kV | |
| (L-PE) - kV | |
| Maximum Continuous Operating Voltage (Uc): | (L-PE) - V |
| (L-L) - V | |
| (L-N) - V | |
| (N-PE) 440 V | |
| Temporary Overvoltage Test Value (UT): | 1200 V |
| Discharge Current: | Nominal 50 kA |
| Maximum 100 kA | |
| Impulse Current: | I (imp, 10 / 350 µs) - kA |
| I (total, 10 / 350 µs) 50 kA | |
| Lightning Impulse Current: | 50 |
| Short Circuit Withstand Icc: | 100 A |
| Arrester Class: | I |
| II | |
| Number of Poles: | 1 |
| Number of Protected Poles: | 1 |
| Version: | Plug-in |
| Mounting Type: | Direct mounting |
| Product Type: | QS |
| Options Provided: | Replacement Cartridge |
| Preventive Maintenance Feature: | Yes |
| Status Indicator: | No |
| Fuse Size: | 1 modular spacing |
| |
| Degree of Protection: | IP20 |
| Maximum Operating Altitude Permissible: | Without Derating 5000 |
| |
| Width in Number of Modular Spacings: | 1 |
| Product Net Width: | 17.6 mm |
| Product Net Height: | 57 mm |
| Product Net Depth / Length: | 67 mm |
| Product Net Weight: | 0.045 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 117 mm |
| Package Level 1 Height: | 82 mm |
| Package Level 1 Depth / Length: | 25 mm |
| Package Level 1 Gross Weight: | 60 g |
| Package Level 1 EAN: | 3660308525918 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363090 |
| Country of Origin: | Bulgaria (BG) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CTC436401G1701 |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001457 - Combined arrester for power supply systems |
| ETIM 7: | EC001457 - Combined arrester for power supply systems |
| ETIM 8: | EC001457 - Combined arrester for power supply systems |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85363090 |
| Object Classification Code: | 141BEC |
