General Information | |
| Global Commercial Alias: | 006750 |
| Product ID: | 7B006750 |
| ABB Type Designation: | 1020T10 GRID & COVER ASSY |
| Catalog Description: | 1020T10 GRID & COVER ASSY |
| |
| ABB Type Designation: | 1020T10 GRID & COVER ASSY |
| ATEX Certificate: | NO |
| Angular Misalignment: | 0.5 ° |
| Axial Misalignment: | 0.375 in |
| Country of Origin: | France (FR) |

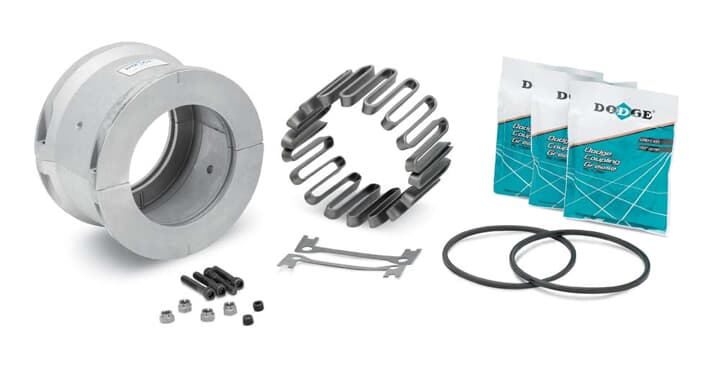

| Coupling Component: | T10 Cover & Grid Assembly |
| Coupling Size: | 1020 |
| Coupling Style: | Grid |
| Coupling Type: | Metallic |
| Cover Style: | Horizontally Split (T10) |
| Customs Tariff Number: | 84833032 |
| Global Commercial Alias: | 006750 |
| Gross Volume: | 2.25 in³ |
| Gross Weight: | 0.681 kg |
| Invoice Description: | 1020T10 GRID & COVER ASSY |
| Lubrication: | Grease |
| Made To Order: | No |
| Maximum Speed: | 4500 r/min |
| Minimum Order Quantity: | 1 piece |
| Number of Bolts: | 4 |
| Order Multiple: | 1 piece |
| Outside Diameter: | 3.47 in |
| Parallel Misalignment: | 0.005 in |
| Product Frame Size: | 1020T |
| Product Name: | DODGE COUPLINGS |
| Product Net Height: | 8.89 cm |
| Product Net Length: | 13.97 cm |
| Product Net Weight: | 0.681 kg |
| Product Net Width: | 13.97 cm |
| Product Type: | Undefined |
| Quote Only: | No |
| Rated Torque: | 464 in·lb |
| Remarks: | T10 GRID & COVER ASSEMBLY |
| Selling Unit of Measure: | piece |
| Shaft Spacing: | Close Coupled |
| Spacer | |
| Size: | 1020T |
| Stocked At (Warehouses): | China |
| Alabama, United States | |
| Alaska, United States | |
| Temperature Rating: | Maximum 215 °F |
| Minimum -22 °F | |
| Tightening Torque: | Central Bolt 100 in·lb |
| Torsional Rigidity: | FLEXIBLE |
| WEEE B2C / B2B: | Business To Business |
| WEEE Category: | Product Not in WEEE Scope |
