Article: QSD-DIG 230/24 V
Article: QSD-DIG 230/24 V

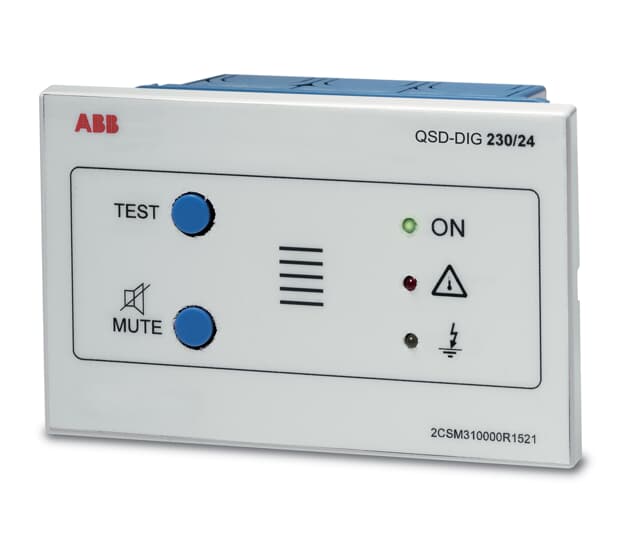

QSD-DIG 230/24 V Remote signalling panel
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | QSD-DIG 230/24 V |
| Product ID: | 2CSM257093R1521 |
| EAN: | 8012542570936 |
| Catalog Description: | QSD-DIG 230/24 V Remote signalling panel |
| Long Description: | Remote signalling panel for visual and acoustic fault indication (vertical) |
| |
| Product Name: | Remote signalling panel |
| Rated Control Supply Voltage (Us): | (50 Hz) 24...24 V |
| (50 Hz) 24...24 V | |
| (60 Hz) 24...24 V | |
| (60 Hz) 24...24 V | |
| (DC) 24...24 V | |
| (DC) 24...24 V | |
| Power Consumption (@P | |
| cons | AtRatedLoad 1 W |
| Delay Time (?): | Release 0...0 second [unit of time] |
| Model Number: | Basic device |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | See RoHS Information |
| |
| Product Net Width: | 78 mm |
| Product Net Height: | 0.121 m |
| Product Net Depth / Length: | 55 mm |
| Product Net Weight: | 0.2 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.95 m |
| Package Level 1 Height: | 0.78 m |
| Package Level 1 Depth / Length: | 0.15 m |
| Package Level 1 Gross Weight: | 0.5 kg |
| Package Level 1 EAN: | 8012542570936 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90303100 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5709 |
| Environmental Information: | See RoHS Information |
| Instructions and Manuals: | 9AKK107046A3897 |
| RoHS Information: | 9AKK107046A5082 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSC004033B0202 |
| Instructions and Manuals: | 9AKK107046A3897 |
| |
| ETIM 6: | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 7: | EC001449 - Device for monitoring of safety-related circuits |
| ETIM 8: | EC001449 - Device for monitoring of safety-related circuits |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90303100 |
