Article: KOT62307
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | KOT62307 |
| Product ID: | 1SCA125905R1001 |
| EAN: | 6417019797069 |

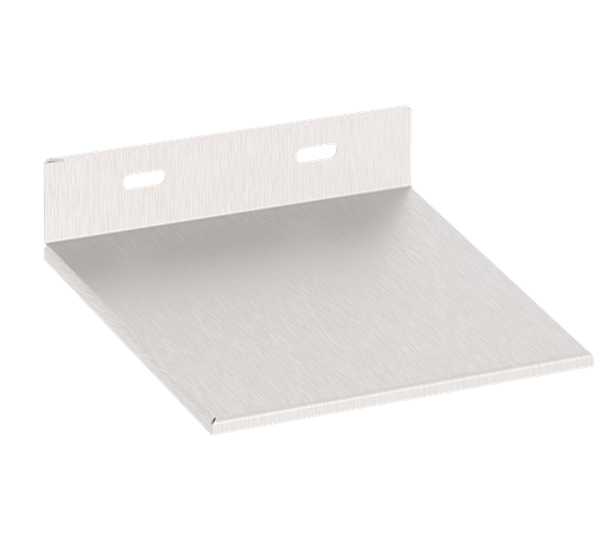

| Catalog Description: | KOT62307 Steel sheet protective shield |
| Long Description: | Protective roof for enclosed switches, made of aluzink coated steel sheet. The shield can be used as a roof to protect the enclosure against dust, water etc.Size of shield is 50x205x160 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC340015C0201 |
| Mechanical Drawings: | KOT62307.stp |
| |
| Product Net Width: | 205 mm |
| Product Net Height: | 50 mm |
| Product Net Depth / Length: | 160 mm |
| Product Net Weight: | 0.001 kg |
| |
| Enclosure Type: | KOT |
| Enclosure Material: | Steel |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 160 mm |
| Package Level 1 Depth / Length: | 205 mm |
| Package Level 1 Height: | 50 mm |
| Package Level 1 Gross Weight: | 0.001 kg |
| Package Level 1 EAN: | 6417019797069 |
| |
| ETIM 5: | EC000744 - Top cover/top cover element (switchgear cabinet) |
| ETIM 6: | EC000744 - Top-/floor cover element (enclosure/switchgear cabinet) |
| ETIM 7: | EC000744 - Top-/floor cover element (enclosure/switchgear cabinet) |
| ETIM 8: | EC000744 - Top-/floor element (enclosure/cabinet) |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
