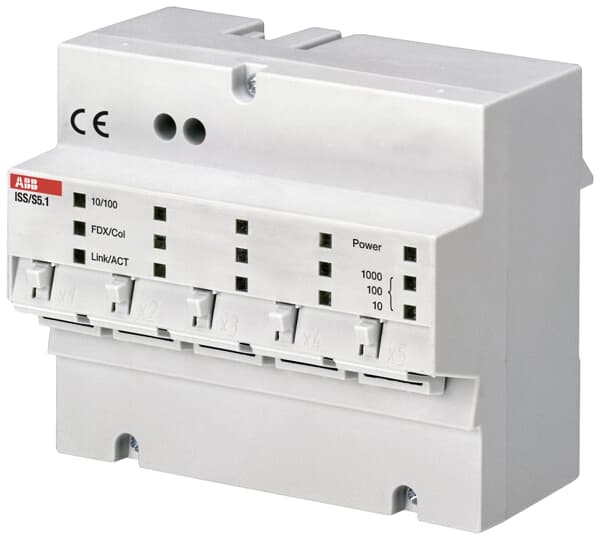

Article: ISS/S5.1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ISS/S5.1 |
| Product ID: | 2CDG120035R0011 |
| EAN: | 4016779697910 |
| Catalog Description: | ISS/S5.1 IP Switch Slave, 5 Port, MDRC |
| Long Description: | IP Switch Slave for MDRC installation. For networking of up to 5 end devices. Can be side connected to the IP Switch Master (ISM/S), accordingly can be extended to 10 end devices. The slave is only functional together with the master. |
| |
| Product Name: | System Infrastructure and Interfacing |
| Power Loss: | 0 W |
| Number of Outputs: | 5 |
| Compatible Bus Systems: | KNX (IP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 6 |
| Product Net Width: | 107.5 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 66.7 mm |
| Product Net Weight: | 0.15 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 115 mm |
| Package Level 1 Height: | 75 mm |
| Package Level 1 Depth / Length: | 100 mm |
| Package Level 1 Gross Weight: | 0.23 kg |
| Package Level 1 EAN: | 4016779697910 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK502010D0602 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC502062D0201 |
| |
| ETIM 6: | EC000734 - Network switch |
| ETIM 7: | EC000734 - Network switch |
| ETIM 8: | EC000734 - Network switch |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 19170130 |
| Object Classification Code: | A |
