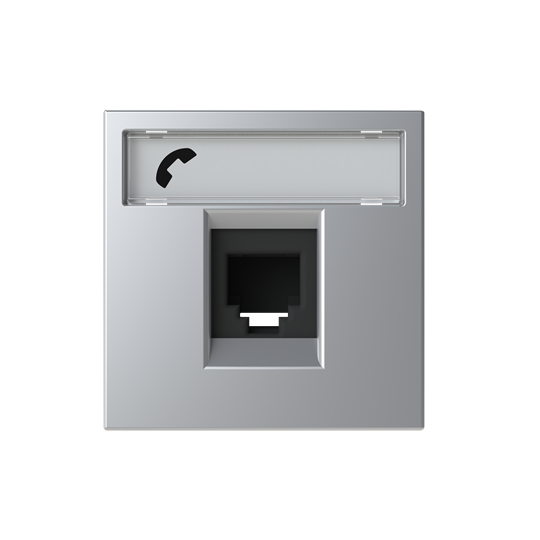

N2217.6 PL Telephone outlet RJ12 - 2M - Silver
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | N2217.6 PL |
| Product ID: | 2CLA221760N1301 |
| EAN: | 8427238068053 |
| Catalog Description: | N2217.6 PL Telephone outlet RJ12 - 2M - Silver |
| Long Description: | Color: Silver.RJ12 type connector6 contactsSuitable for 2, 4 or 6 contscts jackScrew terminalsSize: 2 modules. |
| |
| Product Name: | Telephone outlet RJ12 - 2M - Silver |
| Mounting Type: | Flush mounted (plaster) |
| Type of Fastening: | Engage (Snap) |
| Type of Indicator: | With indication plate |
| Outlet Orientation: | Straight |
| Surface Finishing: | Decor |
| Matt | |
| Material: | Thermoplastic |
| Plastic | |
| Color: | Silver |
| Number of Batteries: | 0 |
| |
| Ambient Air Temperature: | Operation -5 ... +35 °C |
| Storage -5 ... +50 °C | |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 44 mm |
| Product Net Height: | 44 mm |
| Product Net Weight: | 0.023 kg |
| |
| Package Level 1 Units: | box 10 piece |
| Package Level 1 Width: | 0.11 m |
| Package Level 1 Height: | 0.05 m |
| Package Level 1 Depth / Length: | 0.293 m |
| Package Level 1 Gross Weight: | 0.23 kg |
| Package Level 1 EAN: | 8427238068053 |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85369010 |
| Country of Origin: | Spain (ES) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A5893 |
| Instructions and Manuals: | 2CLX210109N1001 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK10103A5108 |
| Instructions and Manuals: | 2CLX210109N1001 |
| |
| ETIM 6: | EC000018 - Insert/cover for communication technology |
| ETIM 7: | EC000018 - Insert/cover for communication technology |
| ETIM 8: | EC000018 - Insert/cover for communication technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85369010 |
| UNSPSC: | 39121406 |
