Article: IB132-Y
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | IB132-Y |
| Product ID: | 1SAM201911R1011 |
| EAN: | 4013614421624 |
| Catalog Description: | IB132-Y Enclosure |

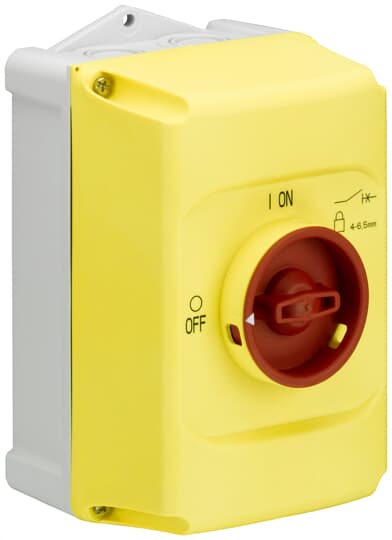

| Long Description: | IB132-Y enclosure is suitable for manual motor starter MS116/MS132. The combination of manual motor starter and enclosure allows to setup all required control and protection functions for single machine installations. The enclosure has a IP65 degree of protection. Additional mounting of auxiliary and signalling contacts, shunt trips and undervoltage release is possible. The handle is up to 3-times lockable in OFF position. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100173C0201 |
| Instructions and Manuals: | 2CDC131028M6805 |
| Dimension Diagram: | 1SAM200441F0001 |
| |
| Product Net Width: | 120 mm |
| Product Net Height: | 120 mm |
| Product Net Depth / Length: | 195 mm |
| Product Net Weight: | 0.37 kg |
| |
| Contact Position Indication: | ON / OFF / TRIP |
| Actuator Type: | Rotary Handle |
| Color: | Yellow / Red |
| Degree of Protection: | IP65 |
| Standards: | CSA 22.2 No. 14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-4-1 | |
| UL 508 | |
| Product Name: | Enclosure |
| Suitable For: | MS116 |
| MS132 | |
| Suitable for Product Class: | Manual Motor Starter |
| Accessory Group: | Mechanical |
| Accessory Type: | Enclosure |
| Remarks: | For detailed specification see installation instruction |
| Technical UL/CSA | |
| Enclosure Type UL/CSA: | 12 |
| |
| Ambient Air Temperature: | Operation 0 ... +40 °C |
| Storage -50 ... +80 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| cUL Certificate: | cUL_E137861 |
| Declaration of Conformity - CE: | 1SAD938504-0196 |
| 1SAD938506-0197 | |
| 1SAD938508-0188 | |
| 1SAD938509-0183 | |
| 1SAD938516-0125 | |
| 1SAD938522-0060 | |
| Declaration of Conformity - UKCA: | 1SAD938500-1060 |
| Instructions and Manuals: | 2CDC131028M6805 |
| RoHS Information: | 1SAD938504-0196 |
| 1SAD938506-0197 | |
| 1SAD938508-0188 | |
| 1SAD938509-0183 | |
| 1SAD938516-0125 | |
| 1SAD938522-0060 | |
| UL Certificate: | UL_E137861 |
| |
| Package Level 1 Width: | 129 mm |
| Package Level 1 Depth / Length: | 129 mm |
| Package Level 1 Height: | 141 mm |
| Package Level 1 Gross Weight: | 0.435 kg |
| Package Level 1 EAN: | 4013614421624 |
| Package Level 1 Units: | box 1 piece |
| |
| ETIM 4: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 5: | EC000712 - Empty enclosure for switchgear |
| ETIM 6: | EC000712 - Empty enclosure for switchgear |
| ETIM 7: | EC000712 - Empty enclosure for switchgear |
| eClass: | V11.0 : 27371301 |
| UNSPSC: | 39121334 |
| IDEA Granular Category Code (IGCC): | 4492 >> Modular electrical enclosure |
| E-Number (Finland): | 3705860 |
| E-Number (Sweden): | 3112074 |
