Article: OT2500E04-135
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OT2500E04-135 |
| Product ID: | 1SCA160395R1001 |
| EAN: | 6417019901817 |

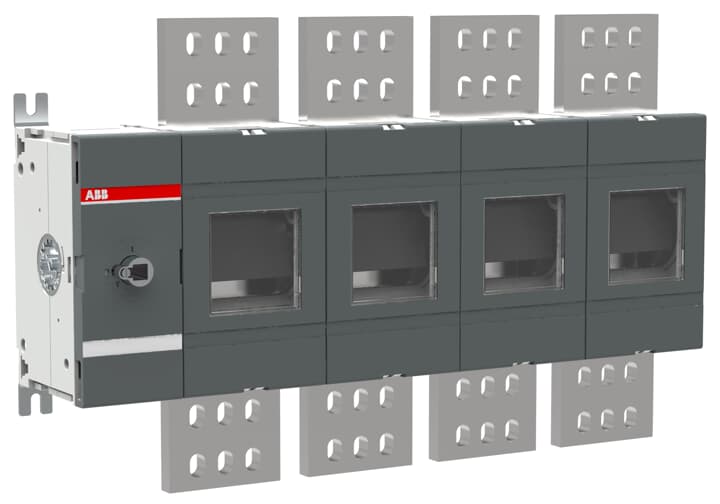

| Catalog Description: | OT2500E04-135 DISCONNECTOR |
| Long Description: | Base mounting 4-pole, front operated disconnector up to 1500Vdc, Utilization category DC-20B, black handle and shaft not included, lug terminal , bolt kit included |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Instructions and Manuals: | 1SCC301101M0201 |
| |
| Product Net Width: | 598.5 mm |
| Product Net Height: | 376.5 mm |
| Product Net Depth / Length: | 145.5 mm |
| Product Net Weight: | 33.3 kg |
| |
| Rated Operational Current AC-21B (Ie): | (380 ... 415 V) 2500 A |
| (500 V) 2500 A | |
| (690 V) 2500 A | |
| Conventional Thermal Current (Ithe): | Fully Enclosed 2500 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1500 V |
| Rated Short-time Withstand Current (Icw): | for 0.3 s 80 kA |
| Power Loss: | at Rated Operating Conditions per Pole 85 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle and shaft not included |
| Standards: | IEC 60947-3 |
| Mounting Type: | Base mounting |
| Number of Poles: | 4 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Tightening Torque: | acc. IEC 60947-1 50…75 N·m |
| Mechanical Durability: | 6000 |
| Lock Type: | No |
| |
| Declaration of Conformity - CE: | 1SCC301229D2701 |
| Instructions and Manuals: | 1SCC301101M0201 |
| RoHS Information: | 1SCC301149D0203 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 407 mm |
| Package Level 1 Depth / Length: | 619 mm |
| Package Level 1 Height: | 190 mm |
| Package Level 1 Gross Weight: | 35.2 kg |
| Package Level 1 EAN: | 6417019901817 |
| |
| Object Classification Code: | Q |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
