Article: IO/S4.6.1.1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | IO/S4.6.1.1 |
| Product ID: | 2CDG110168R0011 |
| EAN: | 4016779881074 |

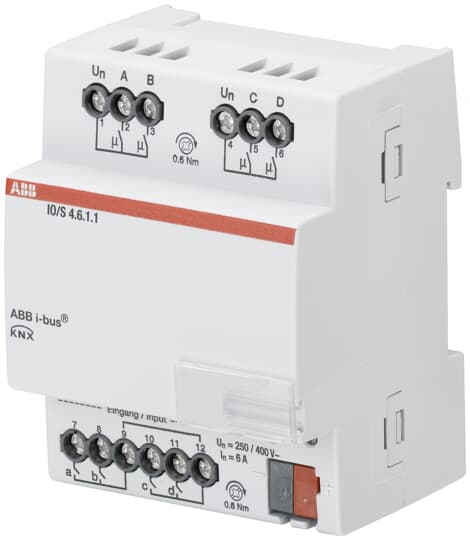

| Catalog Description: | IO/S4.6.1.1 I/O Actuator, 4-fold, MDRC |
| Long Description: | For the control of loads in residential areas, typically in hotel rooms and apartments. The I/O Actuators provide binary inputs for the connection of conventional push-buttons and outputs for switching loads. Inputs and outputs can be internally connected by ETS. By integrating the devices into KNX networks further functions can be realised: e.g. central control or room based emergency calls to a control centre. |
| |
| Product Name: | Standard Outputs |
| Current Type: | AC |
| Special Functions: | Switching |
| Sub-Function: | LED controlling |
| Rated Operational Voltage: | 110 ... 230 V AC |
| Auxiliary Voltage AC/DC: | KNX |
| Input Voltage (Uin): | 230 V AC |
| Rated Current (In): | 6 A |
| Maximum Switching Current: | 6 mA |
| Maximum Switching Power: | 1200 W |
| Power Loss: | 1.05 W |
| Number of Outputs: | Venetian-Blind Maximum 0 |
| Number of LEDs: | 0 |
| Number of Input Channels: | 4 |
| Number of Output Channels: | 4 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| Suitable for C-Load: | No |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 72 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.17 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.22 kg |
| Package Level 1 EAN: | 4016779881074 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| E-Number (Finland): | 2815272 |
| E-Number (Sweden): | 1738024 |
| E-Number (Switzerland): | 405443405 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK505142D2701 |
| Instructions and Manuals: | 2CDG941096P0002 |
| RoHS Information: | 2CDK505142D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC505144D0201 |
| Instructions and Manuals: | 2CDG941096P0002 |
| |
| ETIM 6: | EC001584 - I/O device for bus system |
| ETIM 7: | EC001584 - I/O device for bus system |
| ETIM 8: | EC001584 - I/O device for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143145 |
| Object Classification Code: | A |
