Article: IS40463
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | IS40463 |
| Product ID: | 2CCF544160E0630 |
| EAN: | 7612270104390 |

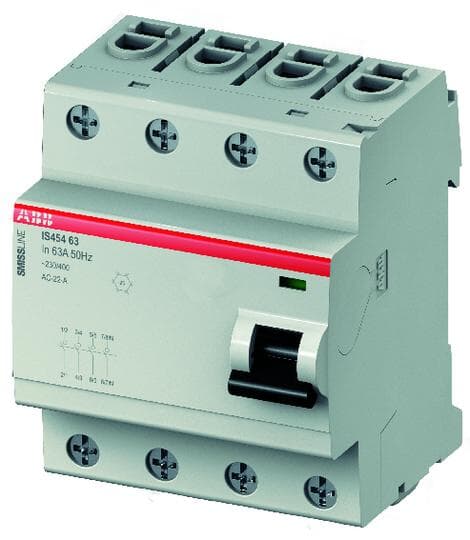

| Catalog Description: | IS40463 Switch Disconnector |
| Long Description: | IS40463 Switch Disconnector 4 Poles Rated current In 63A 230/400VAC SMISSLINE TP-Touch proof system |
| |
| Standards: | IEC/EN 60947-3 |
| Product Name: | Switch Disconnector |
| Rated Operational Voltage: | 230 / 400 V AC |
| Rated Current (In): | 63 A |
| Rated Operational Current (Ie): | 63 A |
| Rated Operational Current AC-21A (Ie): | (400 V) 63 A |
| Rated Short-time Withstand Current (Icw): | 1.5 kA |
| Rated Uninterrupted Current (Iu): | 63 A |
| Power Loss: | 3.2 W |
| Number of Poles: | 4 |
| Number of Switches: | 4 |
| Accessories Available: | Yes |
| Control Element Color: | Black |
| |
| Degree of Protection: | Front IP20 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | 2CCY451206D0201 |
| |
| Product Net Width: | 72 mm |
| Product Net Height: | 91 mm |
| Product Net Depth / Length: | 75 mm |
| Product Net Weight: | 380 g |
| Product Net Length: | 72 mm |
| Size: | 4 modules |
| |
| Package Level 1 Units: | carton 1 piece |
| Package Level 1 Width: | 100 mm |
| Package Level 1 Height: | 90 mm |
| Package Level 1 Depth / Length: | 75 mm |
| Package Level 1 Gross Weight: | 421 g |
| Package Level 1 EAN: | 7612270104390 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85362020 |
| E-Number (Switzerland): | 550510503 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCC451039D0201 |
| Environmental Information: | 2CCY451206D0201 |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CCC413008D0206_RoHS |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107492A6192 |
| Instructions and Manuals: | No document needed |
| Dimension Diagram: | 9AKK107492A6192 |
| |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| EPLAN Catalog Tree: | Electrical engineering / Protection devices / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85362020 |
| Object Classification Code: | SF |
