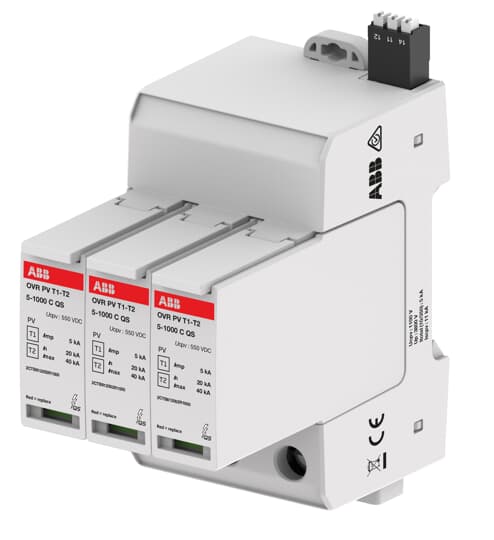

OVR PV T1-T2 5-1000 P TS QS Surge Protective Device
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | OVR PV T1-T2 5-1000 P TS QS |
| Product ID: | 2CTB812051R1000 |
| EAN: | 4053546034639 |
| Catalog Description: | OVR PV T1-T2 5-1000 P TS QS Surge Protective Device |
| Long Description: | OVR PV T1-T2 5-1000 P TS QS Surge Protective Device |
| |
| Standards: | IEC 61 643-11 / EN 50539-11 |
| Product Name: | Surge Protective Device |
| Suitable For: | To protect the systems against the transient overvoltage (lightning) |
| Rated Voltage (Ur): | 1000 V DC |
| Voltage Rating DC: | 1000 V |
| Voltage Protection Level ( Up): | 3.8 kV |
| (L-N) 3.8 kV | |
| (N-PE) 3.8 kV | |
| (L-PE) 3.8 kV | |
| Maximum Continuous Operating Voltage (Uc): | (L-PE) 1100 V |
| (L-L) 1100 V | |
| (L-N) 0 V | |
| (N-PE) 0 V | |
| Maximum Power Point (MPP) Voltage: | 1000 V |
| Rated Service Short-Circuit Breaking Capacity (Ics): | 11 kA |
| Discharge Current: | Nominal (8 / 20 µs) 20 kA |
| I (max, 8 / 20 µs) 40 kA | |
| I (total, 10 / 350 µs) 5 kA | |
| Impulse Current: | I (imp, 10 / 350 µs) 5 kA |
| I (total, 10 / 350 µs) 5 kA | |
| Short Circuit Withstand Icc: | 11 kA |
| Arrester Class: | I |
| II | |
| Number of Poles: | 3 |
| Number of Protected Poles: | 2 |
| Number of Conductors: | 2 |
| Version: | Plug-in |
| Mounting Type: | DIN rail (top hat rail) 35 mm |
| Product Type: | QS |
| Options Provided: | Solar |
| Preventive Maintenance Feature: | No |
| Status Indicator: | Yes |
| Number of Batteries: | 0 |
| Fuse Size: | 3 modular spacing |
| |
| Degree of Protection: | IP20 |
| Maximum Operating Altitude Permissible: | Without Derating 4000 m |
| Technical UL/CSA | |
| Maximum Continuous Operating Voltage UL/CSA (MCOV): | (L-PE) 1100 V |
| (L-L) 1100 V | |
| (L-N) 0 V | |
| (N-PE) 0 V | |
| Voltage Protection Rating UL/CSA (VPR): | Lpe 2.5 kV |
| Ll 2.5 kV | |
| Ln 0 kV | |
| Npe 2.5 kV | |
| |
| Width in Number of Modular Spacings: | 3 |
| Product Net Width: | 64 mm |
| Product Net Height: | 110 mm |
| Product Net Depth / Length: | 84 mm |
| Product Net Weight: | 0.406 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 54 mm |
| Package Level 1 Height: | 102 mm |
| Package Level 1 Depth / Length: | 110 mm |
| Package Level 1 Gross Weight: | 0.406 kg |
| Package Level 1 EAN: | 4053546034639 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85363090 |
| Country of Origin: | Slovenia (SI) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107991A6344 |
| Instructions and Manuals: | 2CTC431032M1701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CTC431104D0201 |
| Instructions and Manuals: | 2CTC431032M1701 |
| Mechanical Drawings: | 2CTC812000F0200.pdf, 2CTC812000F0201.dxf, 2CTC812000F0202.stp, 2CTC812000F0203.igs |
| |
| ETIM 6: | EC000941 - Surge protection device for power supply systems |
| ETIM 7: | EC000941 - Surge protection device for power supply systems |
| ETIM 8: | EC000941 - Surge protection device for power supply systems |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8535 40 00 |
| Object Classification Code: | 141DCC |
