Article: JA/S4.230.1
Article: JA/S4.230.1

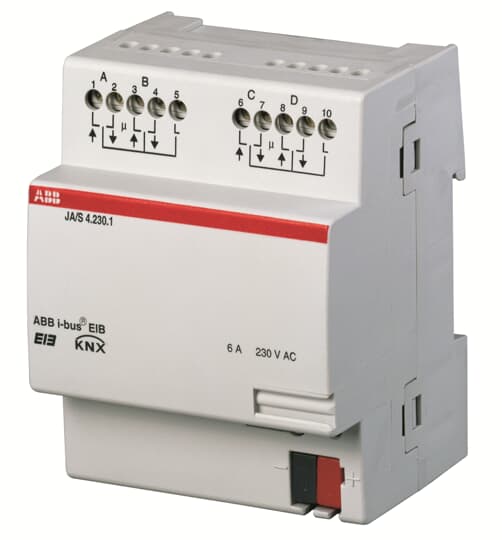

JA/S4.230.1 Shutter Actuator, 4-fold, 230 V AC, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | JA/S4.230.1 |
| Product ID: | GHQ6310072R0111 |
| EAN: | 4016779575553 |
| Catalog Description: | JA/S4.230.1 Shutter Actuator, 4-fold, 230 V AC, MDRC |
| Long Description: | For controlling 4 independent shutter or sunblind drives via ABB i-bus® EIB/KNX including the functions Up/Down, Step/ Stop, Move to position, Sun protection automatic control and Heating/ cooling automatic control. |
| |
| Product Name: | Shading Control |
| Compatible Bus Systems: | KNX (TP) |
| Color: | Light grey |
| |
| RoHS Status: | No declaration needed |
| |
| Product Net Width: | 72 mm |
| Product Net Height: | 65 mm |
| Product Net Depth / Length: | 90 mm |
| Product Net Weight: | 0.238 kg |
| Size: | 4 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.27 kg |
| Package Level 1 EAN: | 4016779575553 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK040000R0004 |
| Instructions and Manuals: | GHQ6307076P0001 |
| RoHS Information: | 2CDG510007-0010 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC506016D0201 |
| 2CDC506022D0201 | |
| Installing and Commissioning Manual: | 2CDC506017D0202 |
| Instructions and Manuals: | GHQ6307076P0001 |
| |
| ETIM 6: | EC001330 - Shutting actuator for bus system |
| ETIM 7: | EC001330 - Shutting actuator for bus system |
| ETIM 8: | EC001330 - Shutting actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 27143128 |
