General Information | |
| Extended Product Type: | M41W448M |
| Product ID: | 1SLM004100S6768 |
| EAN: | 8000126297270 |

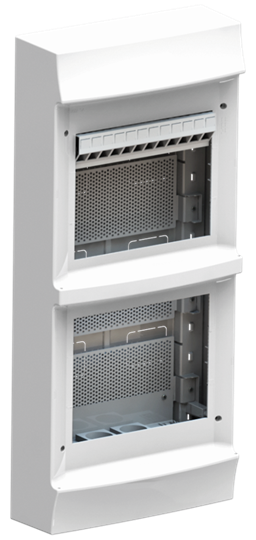

| Catalog Description: | M41W448M Consumer Unit (empty) |
| Long Description: | Consumer unit, series Mistral 41, for the internal use, with Door, class of protection II (double insulated), degree of protection IP41, applicable standards: EN 60670-1, EN 60670-24, IK code 08, Rated operational voltage 400V AC 50/60 Hz, rated current 63 A, Glow wire resistance 750°C, in RAL 9016, enclosure out of Polystyrol, metal door , door out of thermoplast, in RAL 9016, with Snap lock, door opening angle 180 degree, door hinge right or left, cable entry on top via pre-punched, on bottom via pre-punched, on side via closed cable entry, dimensions in mm (H x W x D): 660 x 310 x 125, 4-rows, Space units 48, Row distance in mm: 125, covers out of Plastic, Captive screws, without terminals |
| |
| Product Name: | Consumer Unit (empty) |
| Rated Current (In): | 63 A |
| Number of Rows: | 4 |
| Cover Plate Type: | Optional |
| Mounting Type: | Surface mounted (plaster) |
| Door Type: | Single |
| Housing Material: | Plastic |
| Cover Style: | Closed |
| DIN Place Units: | 48 |
| RAL Number: | RAL 9016 - Traffic White |
| Color: | White |
| |
| Degree of Protection: | IP41 |
| Protection Class: | Isolated |
| |
| Width in Number of Modular Spacings: | 48 |
| Product Net Width: | 310 mm |
| Product Net Height: | 660 mm |
| Product Net Depth / Length: | 125 mm |
| Product Net Weight: | 2.530 kg |
| Size: | 4x12 size |
| Built-In Depth (t2): | 56 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 310.000 mm |
| Package Level 1 Height: | 125.000 mm |
| Package Level 1 Depth / Length: | 660.000 mm |
| Package Level 1 Gross Weight: | 2.530 kg |
| Package Level 1 EAN: | 8000126297270 |
| Package Level 2 Units: | 46 piece |
| Package Level 2 Width: | 1200.000 mm |
| Package Level 2 Height: | 1500.000 mm |
| Package Level 2 Depth / Length: | 800.000 mm |
| Package Level 2 Gross Weight: | 120.580 kg |
| Package Level 2 EAN: | 8000126297287 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85381000 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000214 - Small distribution board |
| ETIM 7: | EC000214 - Small distribution board |
| ETIM 8: | EC000214 - Small distribution board |
| WEEE Category: | Product Not in WEEE Scope |
