KS4241 Measurement and metering transformer cabinet
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | KS4241 |
| Product ID: | 2CPX032902R9999 |
| EAN: | 4011617329022 |
| Catalog Description: | KS4241 Measurement and metering transformer cabinet |

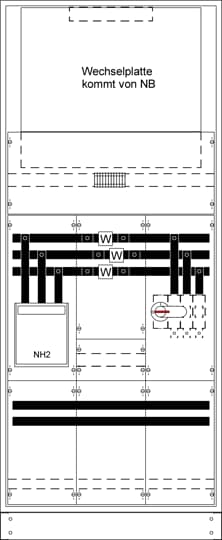

| Long Description: | Measurement and metering transformer cabinet, series TwinLine, fully assembled cabinet, for the internal use, with Door, class of protection II (double insulated), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, rated current 400 A, powder-coated, in RAL 7035, enclosure out of sheet steel, single-leaf door, with Swivel handle, door opening angle 180 degree, door hinge right or left, dimensions in mm (H x W x D): 1850 x 800 x 275, not pre-wired, Earthing system TN-S, 5-pole, Number of transformer meter spaces 1, Meter replacement plate metering transformer conversion board size 1/2, 2 or 3 (KF421, KF414, KF 423), Test terminal X1 (10 connection points), busbar system Cu busbars 30 x 10 mm 5-pole, parting point before the current transformer Fuse switch disconnector NH2/400 A, terminal screws M12, parting point after the current transformer Switch 400 A / 3-pole (M10), PE+N-busbar Cu 30 x 10 mm, Grid unit 12 GU, Overall height 8, panel width 3, Space units 432, covers out of Plastic, Quick sealable connection, RAL 7035, pre-assembled for installation of metering exchange plate |
| |
| Standards: | DIN EN 61439-2 |
| Product Name: | Measurement and metering transformer cabinet |
| Rated Current (In): | 400 A |
| Number of Poles: | 5 |
| Number of Meter Cabinets: | 1 |
| Number of Panel Widths: | 3 |
| Number of Rows: | 0 |
| Lower Connection Space: | with Bus Bar |
| Configuration Type: | pre-assembled for installation of metering exchange plate |
| Enclosure Type: | Measurement and metering transformer cabinet |
| Enclosure Type of Height: | 8 |
| Mounting Type: | Surface-mounted |
| Door Type: | Single |
| Surface Finishing: | powder-coated |
| Housing Material: | Steel plate/plastic |
| Material: | Steel plate |
| DIN Place Units: | 432 |
| Model Number: | 1-story |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | Light grey |
| |
| Degree of Protection: | IP54 |
| Protection Class: | Isolated |
| SCIP: | 29b0f087-c231-4008-b064-9a506b680daa Germany (DE) |
| Simplified SCIP: | 29b0f087-c231-4008-b064-9a506b680daa Germany (DE) |
| |
| Width in Number of Modular Spacings: | 3 |
| Product Net Width: | 800 mm |
| Product Net Height: | 1850 mm |
| Product Net Depth / Length: | 275 mm |
| Product Net Weight: | 102.792 kg |
| Built-In Depth (t2): | 275 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 840.000 mm |
| Package Level 1 Height: | 2025.000 mm |
| Package Level 1 Depth / Length: | 300.000 mm |
| Package Level 1 Gross Weight: | 106.904 kg |
| Package Level 1 EAN: | 4011617329022 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000262 - Meter cabinet equipped |
| ETIM 7: | EC000262 - Meter cabinet equipped |
| ETIM 8: | EC000262 - Meter cabinet equipped |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85371098 |
| Object Classification Code: | U |
