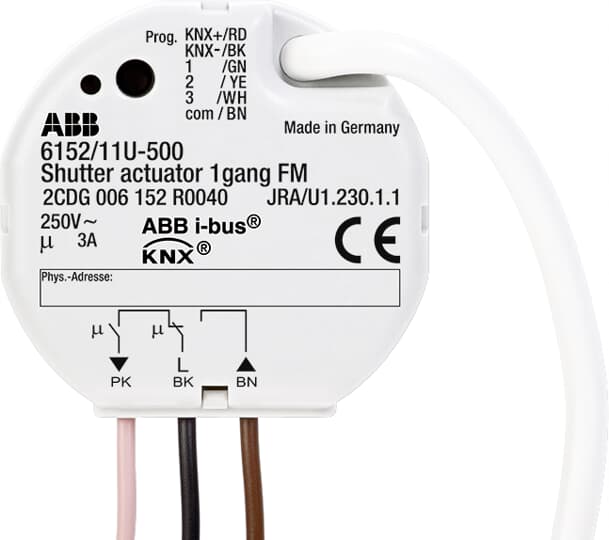

JRA/U1.230.1.1 Shutter Actuator, 1-fold, FM
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | JRA/U 1.230.1.1 |
| Product ID: | 2CDG006152R0040 |
| Catalog Description: | JRA/U1.230.1.1 Shutter Actuator, 1-fold, FM |
| Long Description: | JRA/U1.230.1.1 Shutter Actuator, 1-fold, FM |
| |
| Product Name: | Shading Control |
| Current Type: | AC |
| Maximum Switching Current: | 3 mA |
| Maximum Switching Power: | 690 W |
| Number of Outputs: | 1 |
| Number of LEDs: | 0 |
| Number of Input Channels: | 3 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | Flush Mounted |
| Manual Operation: | No |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| |
| Product Net Width: | 53 mm |
| Product Net Height: | 28 mm |
| Product Net Depth / Length: | 53 mm |
| Product Net Weight: | 0.068 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 93 mm |
| Package Level 1 Height: | 60 mm |
| Package Level 1 Depth / Length: | 75 mm |
| Package Level 1 Gross Weight: | 0.106 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| Replacement Product ID (NEW): | 2CKA006152A0040 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK514101D2701 |
| |
| ETIM 6: | EC001330 - Shutting actuator for bus system |
| ETIM 7: | EC001330 - Shutting actuator for bus system |
| ETIM 8: | EC001330 - Shutting actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143128 |
| Object Classification Code: | A |
