Article: HKF1-10
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | HKF1-10 |
| Product ID: | 1SAM201901R1003 |
| EAN: | 4013614502620 |

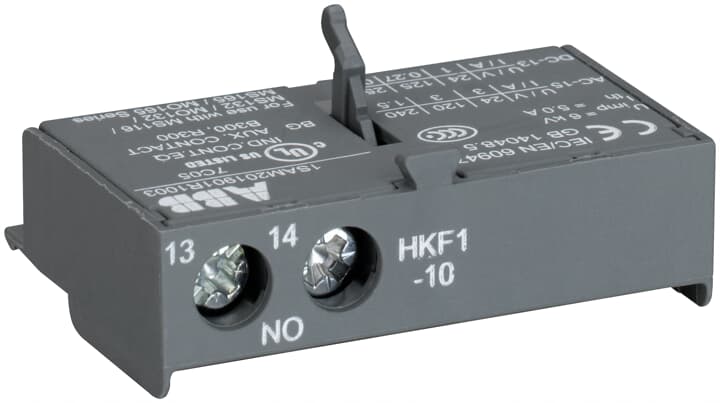

| Catalog Description: | HKF1-10 Auxiliary Contact |
| Long Description: | HKF1-10 Aux.-contact for front mounting |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 85365080 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100192C02-- |
| Instructions and Manuals: | 2CDC131011M6802 |
| 2CDC131034M6801 | |
| 2CDC131022M6802 | |
| 2CDC131120M6801 | |
| 2CDC131081M6801 | |
| 2CDC131082M6801 | |
| |
| Product Net Width: | 45 mm |
| Product Net Height: | 12.5 mm |
| Product Net Depth / Length: | 26.5 mm |
| Product Net Weight: | 0.013 kg |
| |
| Terminal Type: | Screw Terminals |
| Rated Operational Voltage: | 250 V |
| Rated Operational Current AC-15 (Ie): | (24 V) 3 A |
| (120 V) 3 A | |
| (240 V) 1.5 A | |
| Rated Operational Current DC-13 (Ie): | (24 V) 1 A |
| (125 V) 0.27 A | |
| (250 V) 0.11 A | |
| Rated Frequency (f): | Auxiliary Circuit DC |
| Auxiliary Circuit 50 Hz | |
| Auxiliary Circuit 60 Hz | |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Rated Insulation Voltage (Ui): | 250 V |
| Degree of Protection: | IP20 |
| Connecting Capacity Auxiliary Circuit: | Flexible with Ferrule 1/2x 0.75 ... 1.5 mm² |
| Flexible with Insulated Ferrule 1/2x 0.75 ... 1.5 mm² | |
| Flexible 1/2x 0.75 ... 1.5 mm² | |
| Rigid 1/2x 1.0 ... 2.5 mm² | |
| Tightening Torque: | Auxiliary Circuit 0.8 ... 1.2 N·m |
| Wire Stripping Length: | Auxiliary Circuit 8 mm |
| Recommended Screw Driver: | M3 |
| Pozidriv 2 | |
| Number of Auxiliary Contacts NO: | 1 |
| Number of Auxiliary Contacts NC: | 0 |
| Standards: | CSA 22.2 No. 14 |
| IEC/EN 60947-1 | |
| IEC/EN 60947-5-1 | |
| UL 508 | |
| UL 60947-1 | |
| UL 60947-5-1 | |
| Product Name: | Auxiliary Contact |
| Suitable For: | MS116 |
| MS132 | |
| MO132 | |
| MS165 | |
| MO165 | |
| Accessory Group: | Electrical |
| Accessory Type: | Auxiliary Contact |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 250 V AC |
| Connecting Capacity Auxiliary Circuit UL/CSA: | Flexible 1/2x 16-14 AWG |
| Stranded 1/2x 16-14 AWG | |
| Tightening Torque UL/CSA: | Auxiliary Circuit 7 in·lb |
| Contact Rating UL/CSA: | B300 |
| R300 | |
| |
| Ambient Air Temperature: | Operation -25 ... +60 °C |
| Storage -50 ... +80 °C | |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 25g |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 5g / 3 ... 150 Hz |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | 1SAA963003-2002 |
| CQC Certificate: | CQC2017010304032779 |
| Declaration of Conformity - CCC: | 2020980304001251 |
| Declaration of Conformity - CE: | 1SAD938504-0196 |
| 1SAD938507-0190 | |
| 1SAD938504-0198 | |
| 1SAD938506-0197 | |
| 1SAD938506-0191 | |
| 1SAD938508-0188 | |
| 1SAD938509-0183 | |
| 1SAD938516-0125 | |
| 1SAD938522-0060 | |
| 1SAD938503-0304 | |
| Declaration of Conformity - UKCA: | 1SAD938500-1060 |
| Instructions and Manuals: | 2CDC131011M6802 |
| 2CDC131034M6801 | |
| 2CDC131022M6802 | |
| 2CDC131120M6801 | |
| 2CDC131081M6801 | |
| 2CDC131082M6801 | |
| LR Certificate: | 1SAA963001-0501 |
| 1SAA963001-0502 | |
| 1SAA963000-0505 | |
| 1SAA918001-0501 | |
| RINA Certificate: | 1SAA963002-0802 |
| RoHS Information: | 1SAD938504-0196 |
| UL Certificate: | UL_E137861 |
| |
| Package Level 1 Width: | 148 mm |
| Package Level 1 Depth / Length: | 36 mm |
| Package Level 1 Height: | 50 mm |
| Package Level 1 Gross Weight: | 0.195 kg |
| Package Level 1 EAN: | 4013614502637 |
| Package Level 1 Units: | box 10 piece |
| Package Level 2 Width: | 280 mm |
| Package Level 2 Depth / Length: | 395 mm |
| Package Level 2 Height: | 210 mm |
| Package Level 2 Gross Weight: | 10.125 kg |
| Package Level 2 EAN: | 4013614522741 |
| Package Level 2 Units: | carton 500 piece |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000041 - Auxiliary contact block |
| ETIM 6: | EC000041 - Auxiliary contact block |
| ETIM 7: | EC000041 - Auxiliary contact block |
| eClass: | V11.0 : 27371302 |
| UNSPSC: | 39121522 |
| IDEA Granular Category Code (IGCC): | 4742 >> Electrical contacts |
