Article: KLEMME
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | KLEMME |
| Product ID: | GHQ6301902R0001 |
| EAN: | 4016779079303 |

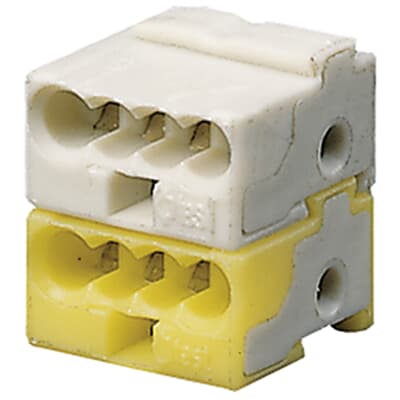

| Catalog Description: | KLEMME Connection Terminal, 50 Pieces |
| Long Description: | Interconnects ABB i-bus® devices having a rear side connection terminal that are mounted on DIN EN 5022 DIN-rails. The data rail is fixed into the DIN-rail, using the adhesive stripe on the rear. |
| |
| Product Name: | Connection and Wiring |
| Power Loss: | 0 W |
| Number of Outputs: | 0 |
| Number of Digital Inputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | Accessory |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| Terminal Type: | Bus Connection |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | No declaration needed |
| |
| Product Net Width: | 10 mm |
| Product Net Height: | 12.4 mm |
| Product Net Depth / Length: | 10 mm |
| Product Net Weight: | 0.002 kg |
| |
| Package Level 1 Units: | bag 50 piece |
| Package Level 1 Width: | 10 mm |
| Package Level 1 Height: | 150 mm |
| Package Level 1 Depth / Length: | 100 mm |
| Package Level 1 Gross Weight: | 0.1 kg |
| Package Level 1 EAN: | 4016779079303 |
| |
| Minimum Order Quantity: | 50 piece |
| Customs Tariff Number: | 85472000 |
| E-Number (Finland): | 2815284 |
| E-Number (Sweden): | 1750076 |
| E-Number (Switzerland): | 157890624 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CDC503014D0201 |
| RoHS Information: | No declaration needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC503014D0201 |
| Instructions and Manuals: | 2CDC503014D0201 |
| |
| ETIM 6: | EC000635 - Connection-/branching terminal for bus system |
| ETIM 7: | EC000635 - Connection-/branching terminal for bus system |
| ETIM 8: | EC000635 - Connection-/branching terminal for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8547 20 00 |
| UNSPSC: | 39121432 |
| eClass: | V11.0 : 27143105 |
| IDEA Granular Category Code (IGCC): | 4603 >> Electrical terminals |
| Object Classification Code: | A |
