KS4221 Measurement and metering transformer cabinet
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | KS4221 |
| Product ID: | 2CPX032269R9999 |
| EAN: | 4011617322696 |
| Catalog Description: | KS4221 Measurement and metering transformer cabinet |

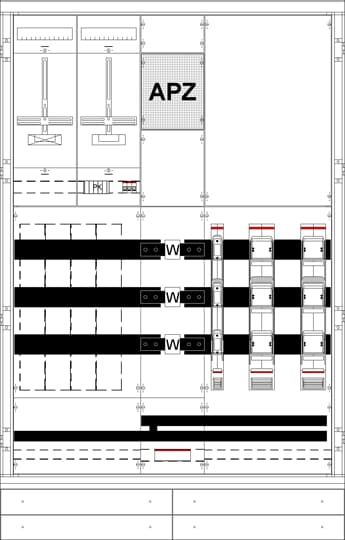

| Long Description: | Measurement and metering transformer cabinet, series pro Energy, fully assembled cabinet, with Metering cross, for the internal use, with Door, class of protection I (earthed), degree of protection IP54, applicable standards: EN 61439-1, EN 61439-2, rated current 1000 A, powder-coated, in RAL 7035, enclosure out of sheet steel, double door, door hinge right and left, dimensions in mm (H x W x D): 2113 x 1350 x 448, Earthing system TN-C-S, 5-pole, Number of reserve spaces 1, Number of transformer meter spaces 1, Test terminals are included according wish DSO, Pre-wired according requirements DSO, voltage path Miniature circuit breaker B16/25 kA 3-pole overvoltage path catagory 3, busbar system Cu busbars 80 x 10 mm 5-pole, parting point after the current transformer 2 Fuse disconnector NH2/400 A, Grid unit 12 GU, Overall height 8, panel width 5, cabinet depth 4, Space units 720, covers out of Plastic, Quick sealable connection, RAL 7035 |
| |
| Standards: | DIN EN 61439-2 |
| Product Name: | Measurement and metering transformer cabinet |
| Rated Current (In): | 1000 A |
| Number of Poles: | 5 |
| Number of Meter Cabinets: | 1 |
| Number of Meter Panels: | 0 |
| Number of Panel Widths: | 3 |
| Number of Rows: | 0 |
| Number of TSG Panels: | 0 |
| Enclosure Type: | Measurement and metering transformer cabinet |
| Enclosure Type of Height: | 8 |
| Mounting Type: | Surface-mounted |
| Door Type: | Double |
| Surface Finishing: | powder-coated |
| Housing Material: | Steel |
| Material: | Steel plate |
| DIN Place Units: | 720 |
| Model Number: | 1-story |
| RAL Number: | RAL 7035 - Light Grey |
| Color: | Light grey |
| |
| Degree of Protection: | IP54 |
| Protection Class: | Grounded |
| SCIP: | 29b0f087-c231-4008-b064-9a506b680daa Germany (DE) |
| Simplified SCIP: | 29b0f087-c231-4008-b064-9a506b680daa Germany (DE) |
| |
| Width in Number of Modular Spacings: | 5 |
| Product Net Width: | 1350 mm |
| Product Net Height: | 2113 mm |
| Product Net Depth / Length: | 448 mm |
| Product Net Weight: | 328.057 kg |
| Built-In Depth (t2): | 448 mm |
| |
| Package Level 1 Units: | pack 1 piece |
| Package Level 1 Width: | 1350.000 mm |
| Package Level 1 Height: | 1915.000 mm |
| Package Level 1 Depth / Length: | 447.000 mm |
| Package Level 1 Gross Weight: | 341.179 kg |
| Package Level 1 EAN: | 4011617322696 |
| Package Level 2 Units: | pallet (lift) 2 piece |
| Package Level 2 Width: | 1350.000 mm |
| Package Level 2 Height: | 1915.000 mm |
| Package Level 2 Depth / Length: | 1200.000 mm |
| Package Level 2 Gross Weight: | 676.114 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | No document needed |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CPC000003B0101 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC000262 - Meter cabinet equipped |
| ETIM 7: | EC000262 - Meter cabinet equipped |
| ETIM 8: | EC000262 - Meter cabinet equipped |
| EPLAN Catalog Tree: | Mechanics / Housings / General |
| WEEE Category: | 4. Large Equipment (Any External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85371098 |
| Object Classification Code: | U |
