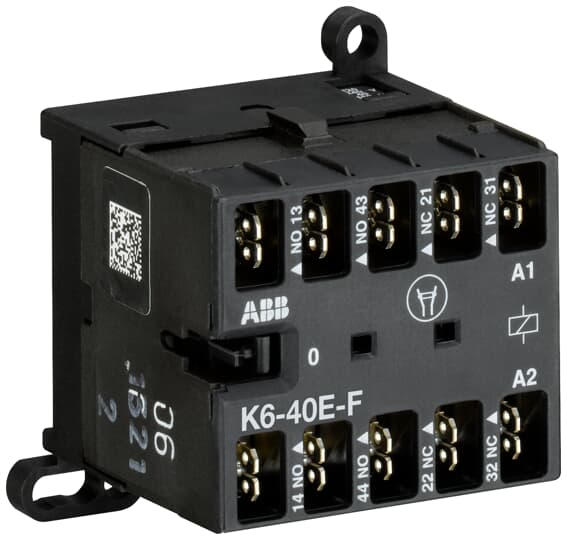

K6-40E-F-02 Mini Contactor Relay 42V 40-450Hz
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | K6-40E-F-02 |
| Product ID: | GJH1211003R0402 |
| EAN: | 4013614231360 |
| Catalog Description: | K6-40E-F-02 Mini Contactor Relay 42V 40-450Hz |
| Long Description: | The K6-40E-F mini contactor relay is a compact 4 pole contactor relay with flat pin connection. They are ideally suited for applications where reliability is a must and space is at a premium. Mini contactors relays are used in residential buldings, commercial buildings and industrial applications for switching of control signals up to 3 A / 400 V (AC-15). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting. |
| |
| Standards: | IEC/EN 60947-1 |
| IEC/EN 60947-4-1 | |
| IEC/EN 60947-5-1 | |
| UL 60947-1 | |
| UL 60947-4-1 | |
| Product Name: | Mini Contactor Relay |
| Rated Operational Voltage: | Auxiliary Circuit 690 V AC |
| Auxiliary Circuit 250 V DC | |
| Rated Insulation Voltage (Ui): | 690 V |
| acc. to UL/CSA 600 V | |
| Rated Impulse Withstand Voltage (Uimp): | Auxiliary Circuit 6 kV |
| Rated Control Circuit Voltage (Uc): | 42 V AC |
| Rated Operational Current AC-15 (Ie): | (24 V) 4 A |
| (120 V) 4 A | |
| (240 V) 4 A | |
| (400 V) 3 A | |
| (500 V) 2 A | |
| Rated Frequency (f): | Auxiliary Circuit 50 Hz |
| Auxiliary Circuit 60 Hz | |
| Auxiliary Circuit DC | |
| Control Circuit 400 Hz | |
| Control Circuit 50 Hz | |
| Control Circuit 60 Hz | |
| Main Circuit 60 Hz | |
| Main Circuit 50 Hz | |
| Main Circuit DC | |
| Minimum Switching Capacity: | 17 V |
| 5 mA | |
| Power Loss: | at Rated Operating Conditions per Pole 2 W |
| Short-Circuit Protective Devices: | gG Type Fuses 6 A |
| Mechanical Durability: | 10000000 cycle |
| Number of Poles: | 4 |
| Number of Main Contacts NC: | 0 |
| Number of Main Contacts NO: | 0 |
| Number of Auxiliary Contacts NC: | 0 |
| Number of Auxiliary Contacts NO: | 4 |
| Low Coil Consumption: | No |
| Mini Contactor Type: | Mini Contactor Relay |
| Mounting Type: | DIN-rail |
| Screw | |
| Mounting on DIN Rail: | TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 | |
| Mounting Position: | Any, Position 1-6 |
| Coil Consumption: | Average Holding Value 50 Hz 3.5 V·A |
| Average Pull-in Value 50 Hz 3.5 V·A | |
| Terminal Type: | Flat-Pin Connections |
| |
| Ambient Air Temperature: | Operation -25 ... +55 °C |
| Storage -40 ... +80 °C | |
| Degree of Protection: | Auxiliary Circuit Terminals IP20 |
| Control Circuit Terminals IP20 | |
| Maximum Operating Altitude Permissible: | 2000 m |
| Resistance to Vibrations acc. to IEC 60068-2-6: | 3g / 3 ... 150 Hz |
| Resistance to Shock acc. to IEC 60068-2-27: | 11 ms Pulse 15g |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SAC200069H0009 |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Auxiliary Circuit 600 V AC/DC |
| General Use Rating UL/CSA: | (600 V AC) 5 A |
| Contact Rating UL/CSA: | A600 |
| Pilot Duty of Contact Elements acc. UL508: | A600 |
| |
| Product Net Width: | 52.5 mm |
| Product Net Height: | 57.5 mm |
| Product Net Depth / Length: | 46.5 mm |
| Product Net Weight: | 0.17 kg |
| |
| Package Level 1 Units: | 10 piece |
| Package Level 1 Width: | 115 mm |
| Package Level 1 Height: | 54 mm |
| Package Level 1 Depth / Length: | 280 mm |
| Package Level 1 Gross Weight: | 1.77 kg |
| Package Level 1 EAN: | 4013614410505 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| CB Certificate: | 1SAA938001-2001 |
| CQC Certificate: | CQC2003010304064035 |
| cURus Certificate: | 1SAA938000-1901 |
| Declaration of Conformity - CCC: | 2020980304001309 |
| Declaration of Conformity - CE: | 1SAD938517-0001 |
| Declaration of Conformity - UKCA: | 1SAD938500-1001 |
| EAC Certificate: | 1SAA938001-2701 |
| Environmental Information: | 1SAC200069H0009 |
| Instructions and Manuals: | 2CDC102047M6801 |
| RMRS Certificate: | 1SAA938001-0704 |
| RoHS Information: | 1SAD938517-0001 |
| UL Certificate: | UL_E48139 |
| UR Certificate: | 1SAA938000-1801 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SBC100214C0202 |
| Instructions and Manuals: | 2CDC102047M6801 |
| Dimension Diagram: | GJL1200437F0001 |
| |
| ETIM 6: | EC000196 - Contactor relay |
| ETIM 7: | EC000196 - Contactor relay |
| ETIM 8: | EC000196 - Contactor relay |
| EPLAN Catalog Tree: | Electrical engineering / Relays, contactors / Contactors |
| EPLAN Function Definition: | Coil / Coil, 2 connection points / Coil for power contactor A1_A2 |
| NO contact / NO contact, 2 connection points / NO auxiliary contact 43_44 | |
| NO contact / NO contact, 2 connection points / NO auxiliary contact 33_34 | |
| NO contact / NO contact, 2 connection points / NO auxiliary contact 23_24 | |
| NO contact / NO contact, 2 connection points / NO auxiliary contact 13_14 | |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8536 50 80 |
| UNSPSC: | 39121500 |
| eClass: | V11.0 : 27371001 |
| Object Classification Code: | K |
