General Information | |
| Extended Product Type: | OT800U12 |
| Product ID: | 1SCA105637R1001 |
| EAN: | 6417019395708 |

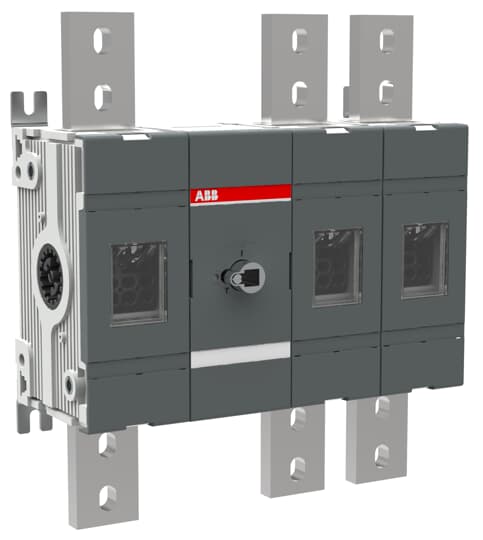

| Catalog Description: | OT800U12 SWITCH-DISCONNECTOR |
| Long Description: | 3-pole, front operated, base mounted non-fusible diconnect switch, handle and shaft are not included, terminal bolt kit included |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Finland (FI) |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SCC301020C0201 |
| Instructions and Manuals: | 1SCC301047M0213 |
| Mechanical Drawings: | 1SCC301506F0001 |
| 1SCC301505F0001 | |
| OT1600E12.igs | |
| |
| Product Net Width: | 334.5 mm |
| Product Net Height: | 372 mm |
| Product Net Depth / Length: | 151.5 mm |
| Product Net Weight: | 17.2 kg |
| |
| Rated Operational Current AC-22A (Ie): | (380 ... 415 V) 1600 A |
| (500 V) 1600 A | |
| (690 V) 1600 A | |
| Rated Operational Current AC-23A (Ie): | (380 ... 415 V) 1250 A |
| (500 V) 1250 A | |
| (690 V) 1250 A | |
| Rated Operational Power AC-23A (Pe): | (380 ... 415 V) 710 kW |
| (500 V) 900 kW | |
| (690 V) 1200 kW | |
| Conventional Thermal Current (Ithe): | Fully Enclosed 800 A |
| Rated Impulse Withstand Voltage (Uimp): | 12 kV |
| Rated Insulation Voltage (Ui): | acc. to IEC/EN 60664-1 1000 V |
| Rated Operational Voltage: | Main Circuit 1000 V |
| Rated Short-Circuit Making Capacity (Icm): | (690 V) 110 kA |
| Rated Short-time Withstand Current (Icw): | for 1 s 50 kA |
| Power Loss: | at Rated Operating Conditions per Pole 29 W |
| Pollution Degree: | 3 |
| Handle Type: | Handle and shaft not included |
| Switches Operating Mechanism: | Mechanism Between the Poles |
| 12 (Between the Poles) | |
| Distance Between Phases: | Standard |
| Position of Line Terminals: | Top In - Bottom Out |
| Bottom In - Top Out | |
| Operating Mode: | Front operated |
| Standards: | IEC 60947-3 / UL 98 / CSA C22.2 NO.4 |
| Special Functions: | No |
| Mounting Type: | Base mounting |
| Number of Poles: | 3 |
| Degree of Protection: | Front IP00 |
| Terminal Type: | Lug terminals |
| Tightening Torque: | acc. IEC 60947-1 56.5 N·m |
| Mechanical Durability: | 6000 |
| Lock Type: | No |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | 600 V |
| Horsepower Rating UL/CSA: | (acc. to UL 240 V) 250 Hp |
| (acc. to UL 480 V) 500 Hp | |
| (acc. to UL 600 V) 500 Hp | |
| Ampere Rating UL/CSA: | 800 A |
| Tightening Torque UL/CSA: | 500 in·lb |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SCC301149D0202 |
| |
| Declaration of Conformity - CE: | 1SCC301155D2704 |
| Environmental Information: | 1SCC301149D0202 |
| Instructions and Manuals: | 1SCC301047M0213 |
| RoHS Information: | 1SCC301149D0203 |
| UL Certificate: | cULus certificate OT800-1200 |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 400 mm |
| Package Level 1 Depth / Length: | 435 mm |
| Package Level 1 Height: | 170 mm |
| Package Level 1 Gross Weight: | 18.5 kg |
| Package Level 1 EAN: | 6417019395708 |
| |
| Object Classification Code: | Q |
| ETIM 5: | EC000216 - Switch disconnector |
| ETIM 6: | EC000216 - Switch disconnector |
| ETIM 7: | EC000216 - Switch disconnector |
| ETIM 8: | EC000216 - Switch disconnector |
| UNSPSC: | 39122233 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
