Article: M16/3-1
Article: M16/3-1

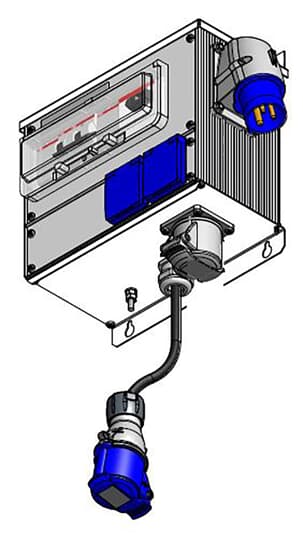

Modular Combi MetalS201 C6 MCBCONTACTOR ESB24-40 230VLOAD SWITCH OT45ML3216BS6, 2P+E, 16A Surface inletTwo Schuko outlet 10/16A w. lid216R1, 2P+E, 16A OutletCable RDOE-S 5x2,5 (1,5m)216-C6, 2P+E, 16A Connector
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | M16/3-1 |
| Product ID: | 2CMA100015R1000 |
| EAN: | 7392696000154 |
| Catalog Description: | Modular Combi MetalS201 C6 MCBCONTACTOR ESB24-40 230VLOAD SWITCH OT45ML3216BS6, 2P+E, 16A Surface inletTwo Schuko outlet 10/16A w. lid216R1, 2P+E, 16A OutletCable RDOE-S 5x2,5 (1,5m)216-C6, 2P+E, 16A Connector |
| Long Description: | Modular Combi MetalS201 C6 MCBCONTACTOR ESB24-40 230VLOAD SWITCH OT45ML3216BS6, 2P+E, 16A Surface inletTwo Schuko outlet 10/16A w. lid216R1, 2P+E, 16A OutletCable RDOE-S 5x2,5 (1,5m)216-C6, 2P+E, 16A Connector |
| |
| E-Number (Sweden): | E2403038 |
| EAN: | 7392696000154 |
| Country of Origin: | Czech Republic (CZ) |
| Minimum Order Quantity: | 1 piece |
| |
| Product Net Width: | 250 mm |
| Product Net Height: | 314 mm |
| Product Net Weight: | 4.115 kg |
| |
| Package Level 1 Width: | 210 mm |
| Package Level 1 Depth / Length: | 270 mm |
| Package Level 1 Height: | 490 mm |
| Package Level 1 Gross Weight: | 4.375 kg |
| Package Level 1 EAN: | 7392696000154 |
| Package Level 1 Units: | box 1 piece |
| Package Level 2 Width: | 800 mm |
| Package Level 2 Depth / Length: | 1200 mm |
| Package Level 2 Height: | 900 mm |
| Package Level 2 Gross Weight: | 807.5 kg |
| Package Level 2 EAN: | 7392696063142 |
| Package Level 2 Units: | pallet (lift) 180 piece |
| |
| Declaration of Conformity - CE: | 2CMC700005D0004 |
| Environmental Information: | 2CMC000057M0000 |
| RoHS Information: | 2CMC700057D0001 |
| REACH Declaration: | 2CMC700005D0004 |
| |
| Additional Information: | 2P+E |
| Ambient Temperature: | -25 ... 40 °C |
| Cable Cross-Section: | 16 mm² |
| Cable Length: | 0 m |
| Color: | Grey |
| Connection Type: | Screw Clamp |
| Degree of Protection: | IP44 |
| Frequency (f): | 50 Hz |
| 60 Hz | |
| Function: | Modular Combi |
| Housing Material: | Aluminium |
| Invoice Description: | Ind. P&S#M16/3-1 |
| Mounting Type: | Wall mounting |
| Number of Poles: | 5 |
| Object Classification Code: | 2CMT005069 |
| Order Multiple: | 1 piece |
| Product Main Type: | M |
| Product Name: | Modular Combi |
| Rated Current (In): | 32 A |
| Rated Voltage (Ur): | 200 ... 250 V |
| Recommended Screw Driver: | PH2 |
| Standards: | IEC 61439-1 |
| IEC 61439-2 | |
| Suitable For: | M16/1 |
| Suitable for Product Class: | IEC Industrial Plugs and Sockets |
| Instructions and Manuals: | 2CMC711001M0201 |
| Installation Manual: | 2CMC711001M0201 |
| |
| eClass: | 27440501 |
| UNSPSC: | 39120000 |
