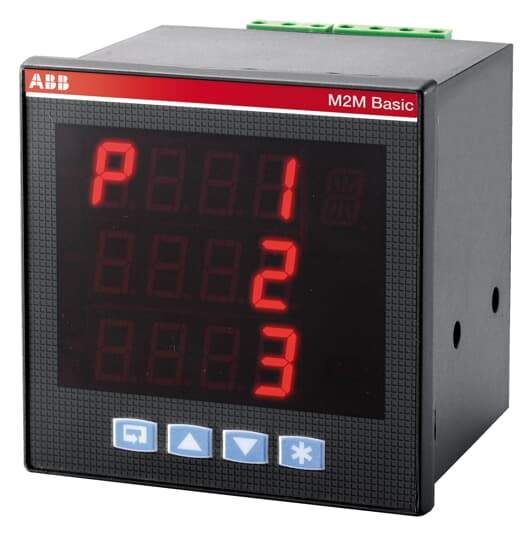

Article: M2M Basic
We find the right product
for you
Official reseller
Expert engineering support
Configuration
):
General Information | |
| Extended Product Type: | M2M Basic |
| Product ID: | 2CNM203002R2001 |
| EAN: | 8012542178323 |
| Catalog Description: | M2M Basic Power meter |
| Long Description: | M2M Basic is a power meter |
| |
| Product Name: | Power meter |
| Current Type: | Mains |
| Rated Operational Voltage: | 40-300 V AC |
| Primary Voltage: | 40-800000 V AC |
| Rated Operational Current (Ie): | 0.020-6 A |
| Rated Primary Current (Ipn): | 1-10000 A |
| Power Consumption (@P | |
| cons | 3 V·A |
| Accuracy: | Active Energy ±1% |
| Number of Input Channels: | Number of voltage input channels: 3 |
| Number of current input channels: 3 | |
| Meter Type: | Digital |
| Mounting Type: | Front-panel |
| Type of Indicator: | Digital |
| I/O Option: | None |
| Communication: | None |
| |
| Ambient Air Temperature: | Operation -25 ... +70 °C |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 0.096 m |
| Product Net Height: | 0.096 m |
| Product Net Depth / Length: | 90 mm |
| Product Net Weight: | 0.350 kg |
| Dimensions: | 96 mm x 96 mm |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 0.125 m |
| Package Level 1 Height: | 0.104 m |
| Package Level 1 Depth / Length: | 0.125 m |
| Package Level 1 Gross Weight: | 0.38 kg |
| Package Level 1 EAN: | 8012542178323 |
| |
| Minimum Order Quantity: | 6 piece |
| Customs Tariff Number: | 90303100 |
| Replacement Product ID (NEW): | 2TAZ662010R2000 |
| Country of Origin: | Brazil (BR) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106930A4903 |
| Instructions and Manuals: | 9AKK106930A4042 |
| RoHS Information: | 2CSC445025D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK106930A4041 |
| Instructions and Manuals: | 9AKK106930A4042 |
| |
| ETIM 6: | EC001194 - Power quality analyzer |
| ETIM 7: | EC001194 - Power quality analyser |
| ETIM 8: | EC001194 - Power quality analyser |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 90303100 |
| Object Classification Code: | P |
