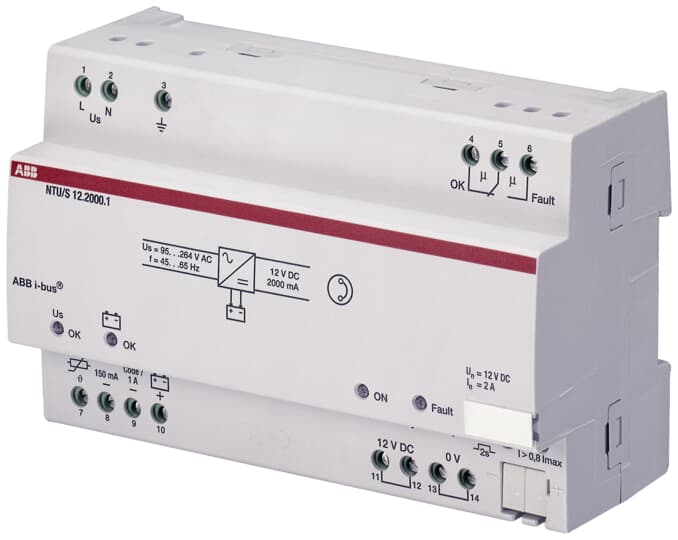

NTU/S12.2000.1 Uninterruptible Power Supply, 12 V DC, 2 A, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | NTU/S12.2000.1 |
| Product ID: | 2CDG110070R0011 |
| EAN: | 4016779681179 |
| Catalog Description: | NTU/S12.2000.1 Uninterruptible Power Supply, 12 V DC, 2 A, MDRC |
| Long Description: | delivers sufficient power for all types of demanding applications with a buffered output voltage of 12 V DC (SELV) and a maximum output current of 2 A. Operating malfunctions of the power supply are signalled via a changeover contact and can be sent for evaluation purposes. Up to two 12 V DC sealed lead-acid batteries (gel cell) can be connected in parallel with the power supply, in conjunction with the KS/K 4.1 and KS/K 2.1 cable sets, or the AM/S 12.1 battery module. |
| |
| Product Name: | Power Supply |
| Voltage Range: | 110 ... 230 V AC |
| Buffer Voltage: | No |
| Output Current Maximum (Iout): | 2 A |
| Power Loss: | 8 W |
| Number of Outputs: | 1 |
| Number of LEDs: | 1 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 8 |
| Product Net Width: | 144 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.379 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 149 mm |
| Package Level 1 Gross Weight: | 0.43 kg |
| Package Level 1 EAN: | 4016779681179 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85044090 |
| E-Number (Finland): | 2815290 |
| E-Number (Switzerland): | 405800405 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK501013D2701 |
| Instructions and Manuals: | 2CDG941059P0003 |
| RoHS Information: | 2CDK501013D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC501042D0201 |
| Instructions and Manuals: | 2CDG941059P0003 |
| |
| ETIM 6: | EC002540 - DC-power supply |
| ETIM 7: | EC002540 - DC-power supply |
| ETIM 8: | EC002540 - DC-power supply |
| EPLAN Catalog Tree: | Electrical engineering / Voltage source and generator / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8504 40 90 |
| eClass: | V11.0 : 27040701 |
| IDEA Granular Category Code (IGCC): | 4130 >> DC-power supply |
| Object Classification Code: | A |
