Article: LD38-4
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | LD38-4 |
| Product ID: | 1SBN072308R1000 |
| EAN: | 3471523130838 |
| Catalog Description: | LD38-4 Additional Terminal Block |

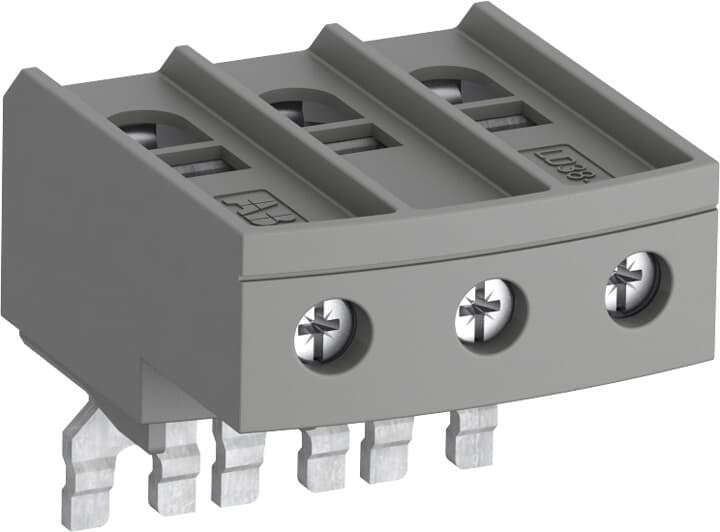

| Long Description: | The LD terminal block is designed to increase the connecting capacity of 3-pole AF26 ... AF38 contactors on which it is fitted and for preparation of the wiring before final connection to the contactor. LD38-4 blocks are 3-pole terminal blocks with tunnel terminals. |
| |
| Product Name: | Additional Terminal Block |
| Suitable For: | AF26 |
| AF30 | |
| AF38 | |
| AFC26 | |
| AFC30 | |
| AFC38 | |
| Tightening Torque: | Main Circuit 2.5 N·m |
| Terminal Type: | Screw Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Environmental Information: | 1SBD250169E1000 |
| |
| Product Net Width: | 44.8 mm |
| Product Net Height: | 40.5 mm |
| Product Net Depth / Length: | 50 mm |
| Product Net Weight: | 0.07 kg |
| |
| Package Level 1 Units: | bag 2 piece |
| Package Level 1 Width: | 90 mm |
| Package Level 1 Height: | 46 mm |
| Package Level 1 Depth / Length: | 160 mm |
| Package Level 1 Gross Weight: | 0.14 kg |
| Package Level 1 EAN: | 3471523130838 |
| |
| Minimum Order Quantity: | 2 piece |
| Customs Tariff Number: | 85369010 |
| E-Number (Sweden): | 3210256 |
| Country of Origin: | India (IN) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 1SBD250021U1000 |
| Environmental Information: | 1SBD250169E1000 |
| GOST Certificate: | GOST_POCCFR.ME77.B07175.pdf |
| RoHS Information: | 1SBD250021U1000 |
| |
| ETIM 6: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 7: | EC002498 - Accessories for low-voltage switch technology |
| ETIM 8: | EC002498 - Accessories/spare parts for low-voltage switch technology |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8536 90 10 |
| UNSPSC: | 39120000 |
