General Information | |
| Extended Product Type: | LCR |
| Product ID: | 2CSM229901R1311 |
| EAN: | 8012542299011 |

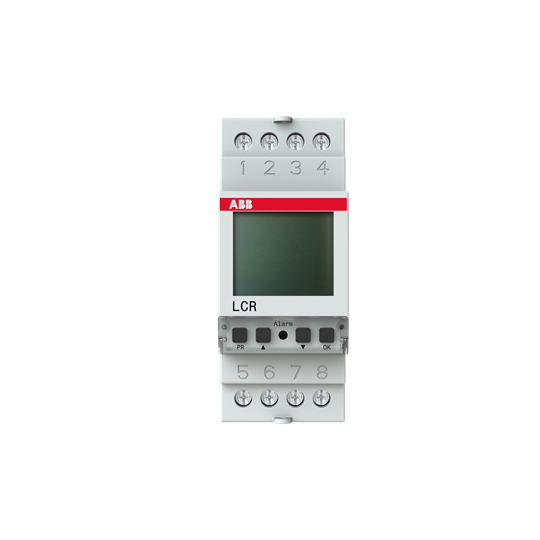

| Catalog Description: | LCR Load management relay |
| Long Description: | Installed downstream of the main circuit-breaker, it compares the actual power consumption of the system to a preset maximum permitted value, and prevents tripping of the main circuit-breaker by switching off one non-prioritary load when the present threshold is exceeded. |
| |
| Product Name: | Load management relay |
| Rated Voltage (Ur): | 230 V |
| Rated Current (In): | 32...32 A |
| Current Range: | 32...32 A |
| Power Consumption (@P | |
| cons | 6 V·A |
| Number of Contacts CO: | 0 |
| Number of Contacts NC: | 0 |
| Number of Contacts NO: | 1 |
| Delay Time (?): | Off, Maximum, Switched Off 9999000 ms |
| Mounting Type: | DIN rail |
| Number of Batteries: | 0 |
| Screen Size: | 1.408 in |
| |
| Degree of Protection: | IP20 |
| |
| Width in Number of Modular Spacings: | 2 |
| Product Net Width: | 36 mm |
| Product Net Height: | 87.5 mm |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 135 g |
| Built-In Depth (t2): | 65 mm |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 41 mm |
| Package Level 1 Height: | 92 mm |
| Package Level 1 Depth / Length: | 81 mm |
| Package Level 1 Gross Weight: | 168 g |
| Package Level 1 EAN: | 8012542299011 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 90303100 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107492A4196 |
| Instructions and Manuals: | 9AKK107492A2346 |
| RoHS Information: | 9AKK107492A4197 |
| Popular Downloads | |
| Data Sheet, Technical Information: | No document needed |
| Instructions and Manuals: | 9AKK107492A2346 |
| |
| ETIM 6: | EC001655 - Load shedding relay for distribution board |
| ETIM 7: | EC001655 - Load shedding relay for distribution board |
| ETIM 8: | EC001655 - Load shedding relay for distribution board |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 90303100 |
| Object Classification Code: | K |
