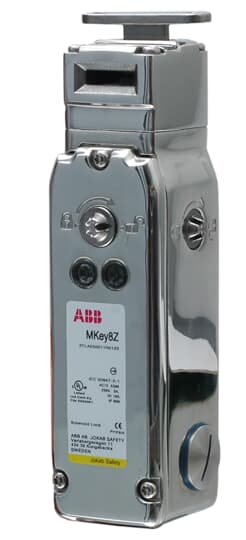

Article: MKey8Z 24VDC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | MKey8Z 24VDC |
| Product ID: | 2TLA050011R0122 |
| EAN: | 7350024466478 |
| Catalog Description: | MKey8Z 24VDC Switch |
| Long Description: | Safety interlock switch, stainless steel housing and head lock, 3xM20 conduits entries, +24VDC power to unlock. Delivered with standard key. |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 8536500700 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2TLC010001C0202 |
| Instructions and Manuals: | 2TLC172245M0201 |
| Wiring Diagram: | 2TLC010025T0001 |
| Marketing Video: | 2TLC010018N0201 |
| |
| Product Net Depth / Length: | 47 mm |
| Product Net Height: | 177 mm |
| Product Net Width: | 48 mm |
| Product Net Weight: | 0.867 kg |
| |
| Degree of Protection: | IP67 |
| IP69K | |
| Rated Control Supply Voltage (Us): | 24 V DC |
| |
| Declaration of Conformity - CE: | 2TLC172101D0201 |
| Instructions and Manuals: | 2TLC172245M0201 |
| |
| Object Classification Code: | B |
| ETIM 4: | EC002593 - Position switch with interlocking |
| ETIM 5: | EC002593 - Position switch with interlocking |
| ETIM 6: | EC002593 - Position switch with interlocking |
| ETIM 7: | EC002593 - Position switch with guard locking |
| eClass: | V11.0 : 27270611 |
