General Information | |
| Extended Product Type: | LMRS |
| Product ID: | 2CDG250001R0011 |
| EAN: | 4016779659383 |
| Catalog Description: | LMRS Magnet Reedcontact, 230 V |

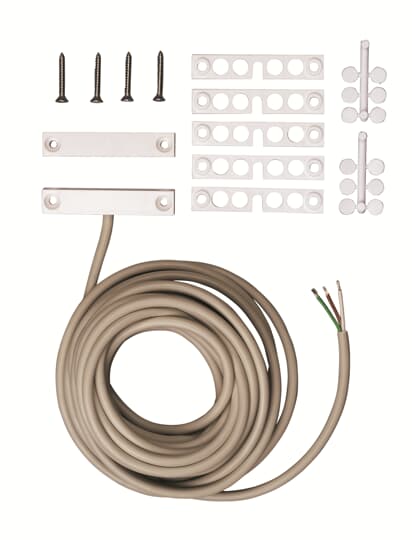

| Long Description: | Magnet-reed-contact set for the control of a 230 V AC relay |
| |
| Product Name: | Conventional |
| Voltage Range: | 85 ... 265 V DC |
| Maximum Switching Current: | 0.5 mA |
| Power Loss: | 0 W |
| Number of Outputs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | No |
| Color: | White |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP68 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 65 mm |
| Product Net Height: | 12 mm |
| Product Net Depth / Length: | 12 mm |
| Product Net Weight: | 0.311 kg |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 60 mm |
| Package Level 1 Height: | 120 mm |
| Package Level 1 Depth / Length: | 120 mm |
| Package Level 1 Gross Weight: | 0.35 kg |
| Package Level 1 EAN: | 4016779659383 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365011 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK107046A4018 |
| Instructions and Manuals: | 2CDG941119P0001 |
| RoHS Information: | 9AKK107046A4018 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDG941119P0001 |
| Instructions and Manuals: | 2CDG941119P0001 |
| |
| ETIM 6: | EC001761 - Opening detector for intrusion detection system |
| ETIM 7: | EC001761 - Opening detector for intrusion detection system |
| ETIM 8: | EC001761 - Opening detector for intrusion detection system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 8536 50 11 |
| eClass: | V7.0 : 27399209 |
| Object Classification Code: | A |
