Article: P9PDNF0
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | P9PDNF0 |
| Product ID: | 1SFA187055R1300 |
| EAN: | 7320500522950 |

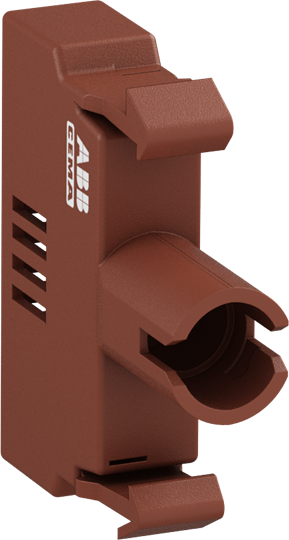

| Catalog Description: | LAMP BLOCK P9PDNF0 |
| Long Description: | FULL VOLTAGE LAMP BLOCK FASTON MAX 380 V AC/DC |
| |
| Minimum Order Quantity: | 10 piece |
| Customs Tariff Number: | 8536619090 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 1SFC151007C02__ |
| Instructions and Manuals: | 1SFC151011M0201 |
| |
| Product Net Width: | 9.3 mm |
| Product Net Height: | 36.3 mm |
| Product Net Depth / Length: | 39.4 mm |
| Product Net Weight: | 0.013 kg |
| |
| Color: | Brown |
| Illumination: | Illuminated |
| Lamp Type: | Lamp block for Ba9s socket for max 2W 380 V AC/DC LED |
| Mounting Type: | Front mounting |
| Degree of Protection: | Terminals IP2X |
| Rated Operational Voltage: | Maximum 380 V AC/DC |
| |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| RoHS Information: | 2CMT2019-005862 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| |
| BV Certificate: | 2CMT2019-005867 |
| CB Certificate: | 2CMT2019-005874 |
| CCC Certificate: | 2CMT2019-005872 |
| CQC Certificate: | CQC2013010304650811 |
| CSA Certificate: | 2CMT2019-005868 |
| Declaration of Conformity - CCC: | 2020980304001860 |
| Declaration of Conformity - CE: | 2CMT2019-005862 |
| DNV GL Certificate: | 2CMT2019-005876 |
| Instructions and Manuals: | 1SFC151011M0201 |
| RINA Certificate: | 2CMT2019-005866 |
| RoHS Information: | 2CMT2019-005862 |
| UL Certificate: | 2CMT2019-005868 |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 80 mm |
| Package Level 1 Depth / Length: | 50 mm |
| Package Level 1 Height: | 120 mm |
| Package Level 1 Gross Weight: | 0.013 kg |
| Package Level 1 EAN: | 7320500522950 |
| |
| ETIM 7: | EC000204 - Lamp holder block for control circuit devices |
| eClass: | V11.0 : 27371209 |
| UNSPSC: | 39121500 |
| E-Number (Finland): | 2314729 |
