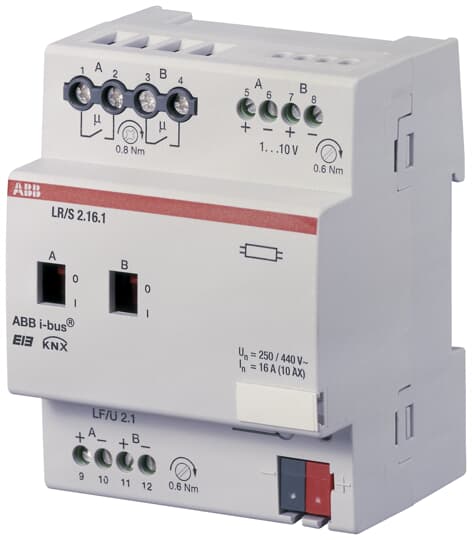

LR/S2.16.1 Light Controller, 2-fold, 1-10 V, MDRC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | LR/S2.16.1 |
| Product ID: | 2CDG110087R0011 |
| EAN: | 4016779664059 |
| Catalog Description: | LR/S2.16.1 Light Controller, 2-fold, 1-10 V, MDRC |
| Long Description: | Device for switching and dimming two independent groups of luminaries with electronic ballasts (0 – 10 V control input). When combined with the light sensor LF/U 2.1 the device can be used as a 2-fold light controller for constant light control. |
| |
| Product Name: | Lighting Control |
| Voltage Range: | 110 ... 230 V AC |
| Maximum Switching Current: | 16 mA |
| Maximum Control Current DC: | 100 mA |
| Maximum Switching Power: | 2300 W |
| Power Loss: | 2.6 W |
| Number of Outputs: | 2 |
| Number of LEDs: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | DIN-rail |
| Manual Operation: | Yes |
| Color: | Light grey |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Width in Number of Modular Spacings: | 4 |
| Product Net Width: | 72 mm |
| Product Net Height: | 90 mm |
| Product Net Depth / Length: | 64.5 mm |
| Product Net Weight: | 0.2 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 77 mm |
| Package Level 1 Gross Weight: | 0.25 kg |
| Package Level 1 EAN: | 4016779664059 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| E-Number (Finland): | 2815150 |
| E-Number (Sweden): | 1750188 |
| E-Number (Switzerland): | 405670205 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK507020D2701 |
| Instructions and Manuals: | 2CDG941051P0003 |
| RoHS Information: | 2CDK507020D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC507087D0201 |
| Instructions and Manuals: | 2CDG941051P0003 |
| |
| ETIM 6: | EC001095 - Light control unit for bus system |
| ETIM 7: | EC001095 - Light control unit for bus system |
| ETIM 8: | EC001095 - Light control unit for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Logic items / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 27143134 |
| Object Classification Code: | A |
