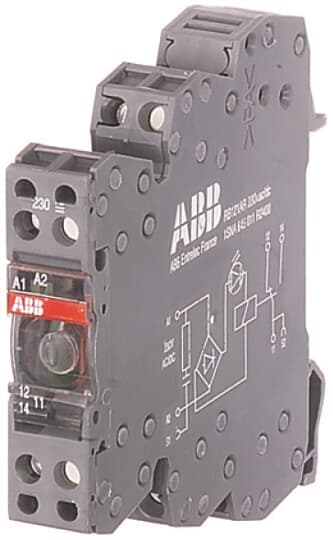

RBR122G-115VUC Interface relay R600 2c/o,A1-A2=115VAC/DC,5-250VAC/10mA-8A
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | RBR122G-115VUC |
| Product ID: | 1SNA645541R0400 |
| EAN: | 4013614508448 |
| Catalog Description: | RBR122G-115VUC Interface relay R600 2c/o,A1-A2=115VAC/DC,5-250VAC/10mA-8A |
| Long Description: | Spring relay RBR122G-115VUC: 115VAC/DC Rated control supply voltage/ 1 DPDT gold plated output contact rated 5-250VAC, 10mA up to 8A with integrated LED |
| |
| Minimum Order Quantity: | 5 piece |
| Customs Tariff Number: | 85364900 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC110004C0210_05 |
| Instructions and Manuals: | 1SVC645000M9000 |
| |
| Product Net Width: | 12 mm |
| Product Net Height: | 67.5 mm |
| Product Net Depth / Length: | 75 mm |
| Product Net Weight: | 0.04 kg |
| |
| Function: | Boxed interface relay R600 |
| Sub-Function: | Relay with built in LED |
| Output: | 2 c/o (SPDT) contacts |
| Output Signal: | 5 ... 250VAC / 10mA ... 8A |
| Rated Control Supply Voltage (Us): | 115 V AC/DC |
| Terminal Type: | Spring Terminals |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| CB Certificate: | CB_DK-53188-UL |
| CCC Certificate: | CCC_2017010303941444 |
| CQC Certificate: | CQC_2017010303941444 |
| CSA Certificate: | CSA_254821 |
| cUR Certificate: | cUR_E352056 |
| Declaration of Conformity - CCC: | CCC_2020980303000254 |
| Declaration of Conformity - CE: | 1SVD982016-0001 |
| Declaration of Conformity - UKCA: | 1SVD982016-1000 |
| EAC Certificate: | EAC_RU_C-FR.ME77.B.01634 |
| Instructions and Manuals: | 1SVC645000M9000 |
| LR Certificate: | LR_16_20068 |
| RoHS Information: | 1SVD982016-0001 |
| UR Certificate: | UR_E352056 |
| |
| Package Level 1 Units: | box 5 piece |
| Package Level 1 Width: | 73 mm |
| Package Level 1 Height: | 71 mm |
| Package Level 1 Depth / Length: | 80 mm |
| Package Level 1 Gross Weight: | 0.24 kg |
| Package Level 1 EAN: | 3472596455415 |
| |
| Object Classification Code: | K |
| ETIM 4: | EC001437 - Switching relay |
| ETIM 5: | EC001437 - Switching relay |
| ETIM 6: | EC001437 - Switching relay |
| ETIM 7: | EC001437 - Switching relay |
| eClass: | V11.0 : 27371601 |
| UNSPSC: | 39122331 |
