Article: 2CSK1210CH
Article: 2CSK1210CH

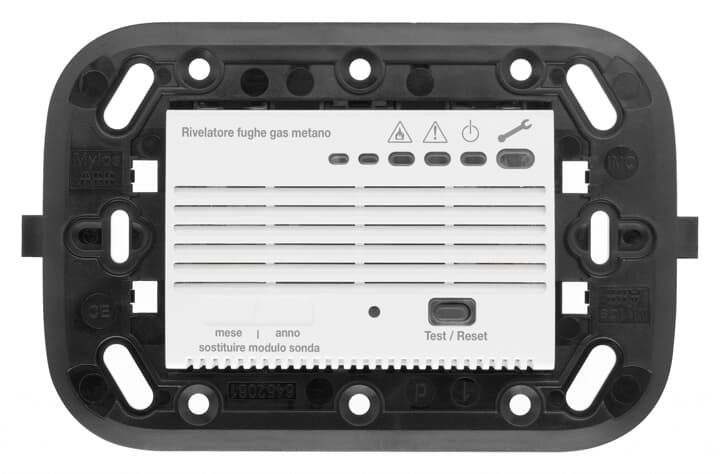

Electronic natural gas detector with acoustic and light signal, relay output, 1 NO/NC change-over contact 6A (AC1)/2A (AC15) - 250V~. Equipped with dedicated frame for installation on type 503 box
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Product ID: | 2CSK1210CH |
| EAN: | 8012542252955 |
| Catalog Description: | Electronic natural gas detector with acoustic and light signal, relay output, 1 NO/NC change-over contact 6A (AC1)/2A (AC15) - 250V~. Equipped with dedicated frame for installation on type 503 box |
| Long Description: | Electronic natural gas detector with acoustic and light signal, relay output, 1 NO/NC change-over contact 6A (AC1)/2A (AC15) - 250V~. Equipped with dedicated frame for installation on type 503 box |
| |
| Product Name: | Electronic natural gas detector with acoustic and light signal, relay output, 1 NO/NC change-over contact 6A (AC1)/2A (AC15) - 250V~. Equipped with dedicated frame for installation on type 503 box |
| Operational Voltage: | 230 V |
| Input Voltage Type: | AC |
| Rated Current (In): | 6 A |
| Number of Main Contacts NC: | 1 |
| Number of Main Contacts NO: | 1 |
| Transmission Standard: | Acoustic |
| Mounting Type: | Surface mounting |
| Surface Finishing: | Basic |
| Material: | Plastic |
| Illumination: | Non-illuminated |
| Color: | White |
| |
| Width in Number of Modular Spacings: | 3 |
| Product Net Width: | 50 mm |
| Product Net Height: | 45 mm |
| Product Net Depth / Length: | 50 mm |
| Product Net Weight: | 0 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 23 mm |
| Package Level 1 Height: | 26 mm |
| Package Level 1 Depth / Length: | 0.35 m |
| Package Level 1 Gross Weight: | 0.043 kg |
| Package Level 1 EAN: | 8012542252955 |
| Package Level 2 Units: | 12 piece |
| Package Level 2 Width: | 0.05 m |
| Package Level 2 Height: | 0.06 m |
| Package Level 2 Depth / Length: | 0.08 m |
| Package Level 2 Gross Weight: | 0.125 kg |
| Package Level 2 EAN: | 8012542252962 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365080 |
| Country of Origin: | Italy (IT) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | No declaration needed |
| Instructions and Manuals: | 2CSU600010D0901 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CSU600010D0901 |
| Instructions and Manuals: | 2CSU600010D0901 |
| |
| ETIM 6: | EC002455 - Gas detector |
| ETIM 7: | EC002455 - Gas detector |
| ETIM 8: | EC002455 - Gas detector |
| WEEE Category: | Product Not in WEEE Scope |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365080 |
