General Information | |
| Extended Product Type: | RD2 |
| Product ID: | 2CSM142120R1201 |
| EAN: | 8012542058007 |

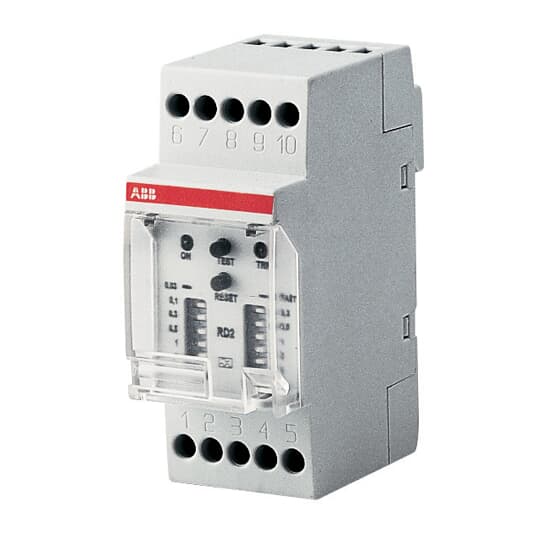

| Catalog Description: | RD2 Residual Current Monitor |
| Long Description: | Residual current monitors (RCMs) with external transformer can detect leakage currents. Through minidip you can set sensitivity and intervention time. Operating voltage: 230…400V a.c. |
| |
| Standards: | IEC EN 62020 |
| Product Name: | Residual Current Monitor |
| Type of Residual Current: | A type |
| Function: | For AC-current system |
| Rated Voltage (Ur): | 400...400 V |
| Rated Operational Voltage: | 230 ... 400 V AC |
| Rated Control Supply Voltage (Us): | (50 Hz) 400...400 V |
| (60 Hz) 400...400 V | |
| Current Rating: | Response value amperage 1 2000 ... 2000 mA |
| Rated Frequency (f): | 50...60 Hz |
| Power Loss: | 3.4 W |
| Number of Contacts: | 1 |
| Number of Contacts CO: | 1 |
| Number of Contacts NC: | 0 |
| Number of Contacts NO: | 0 |
| Delay Time (?): | Delay-On Energization, Maximum, Permitted 5 second [unit of time] |
| Delay-On Energization, Minimum, Adjustable 0.3 second [unit of time] | |
| Mounting Type: | DIN-rail |
| Filter Option: | no frequency filter |
| Options Provided: | Pre-alarm threshold: no |
| |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 35 mm |
| Product Net Height: | 0.085 m |
| Product Net Depth / Length: | 65 mm |
| Product Net Weight: | 0.105 kg |
| Dimensions: | 2 modules |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 0.041 m |
| Package Level 1 Height: | 0.08 m |
| Package Level 1 Depth / Length: | 0.103 m |
| Package Level 1 Gross Weight: | 0.15 kg |
| Package Level 1 EAN: | 8012542058007 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85364190 |
| Country of Origin: | Hungary (HU) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 9AKK106713A5627 |
| Instructions and Manuals: | 0400 - 9924 |
| RoHS Information: | 9AKK106713A5627 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 9AKK107046A0424 |
| Instructions and Manuals: | 0400 - 9924 |
| |
| ETIM 6: | EC001445 - Residual current monitoring relay |
| ETIM 7: | EC001445 - Residual current monitoring relay |
| ETIM 8: | EC001445 - Residual current monitoring relay |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 85364190 |
| Object Classification Code: | F |
