Article: RC200-30
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | RC200-30 |
| Product ID: | 1SFA664005R2030 |
| EAN: | 7320500541685 |
| Catalog Description: | RC200-30 Current Sensor |

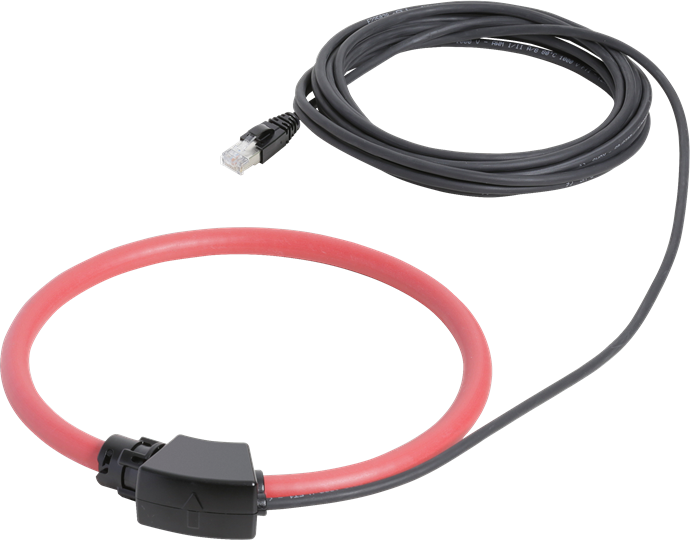

| Long Description: | Open loop current sensor RC200-30 is used together with the CSU-2LV current sensing unit and connected with RJ45 connector. The current sensor uses rogowski coil technology to measure current. The current sensor is specific for CSU-2LV with measurement output of 0,361 V/kA. Coil diameter for bus bar or cable is 200 mm, transducer diameter is 12,4 mm and the cable length of 30 m. The open loop current sensor is assembled with a bayonet holder. |
| |
| EAN: | 7320500541685 |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389099 |
| |
| Product Net Width: | 230 mm |
| Product Net Height: | 55 mm |
| Product Net Depth / Length: | 230 mm |
| Product Net Weight: | 1.05 kg |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 300 mm |
| Package Level 1 Height: | 55 mm |
| Package Level 1 Depth / Length: | 425 mm |
| Package Level 1 Gross Weight: | 1.05 kg |
| Package Level 1 EAN: | 7320500541685 |
| |
| Ambient Air Temperature: | Operation -30 ... +80 °C |
| Storage -40 ... +80 °C | |
| RoHS Status: | Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019 |
| |
| Connection Type: | RJ45 |
| Function: | Shielded cable |
| Product Main Type: | TVOC-2 |
| Product Name: | Current Sensor |
| RoHS Date: | 1009 1 |
| Suitable For: | CSU-2LV |
| |
| Data Sheet, Technical Information: | 1SFC170001C0201 |
| Declaration of Conformity - CE: | 2CMT2020-005896 |
| Instructions and Manuals: | 1SFC170020M0201 |
| RoHS Information: | 2CMT2020-005896 |
| |
| ETIM 6: | EC002048 - Current transformer |
| ETIM 7: | EC002048 - Current transformer |
| UNSPSC: | 39121032 |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| eClass: | V11.0 : 27210902 |
