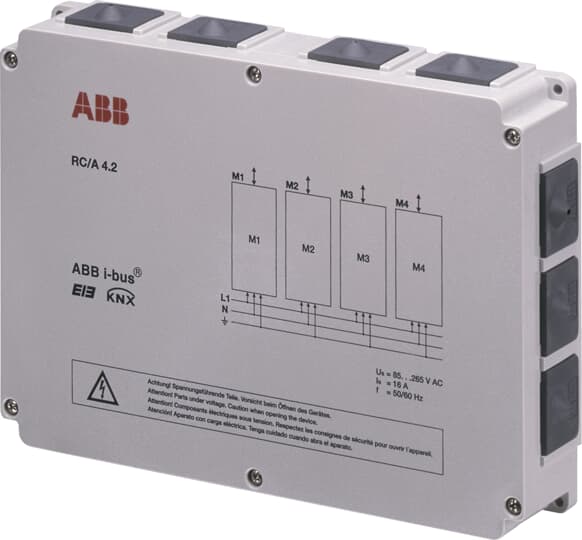

RC/A4.2 Room Controller Basis Device, 4 Modules, SM
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | RC/A4.2 |
| Product ID: | 2CDG110104R0011 |
| EAN: | 4016779676472 |
| Catalog Description: | RC/A4.2 Room Controller Basis Device, 4 Modules, SM |
| Long Description: | Accommodates up to 4 plug-in modules. It controls their function and communicates as one bus device via the ABB i-bus®. Any module type can be plugged into each module slot. Manual operation for functional tests. |
| |
| Product Name: | Multifunction Room Automation |
| Auxiliary Voltage AC/DC: | 110 ... 240 V AC |
| Power Loss: | 3 W |
| Number of Outputs: | 0 |
| Number of Digital Inputs: | 0 |
| Number of Input Channels: | 0 |
| Compatible Bus Systems: | KNX (TP) |
| Mounting Type: | Surface Mounted |
| Manual Operation: | Yes |
| Color: | White |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP54 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 50 mm |
| Product Net Height: | 200 mm |
| Product Net Depth / Length: | 275 mm |
| Product Net Weight: | 0.83 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 206 mm |
| Package Level 1 Height: | 54 mm |
| Package Level 1 Depth / Length: | 281 mm |
| Package Level 1 Gross Weight: | 0.98 kg |
| Package Level 1 EAN: | 4016779676472 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371091 |
| E-Number (Finland): | 2815218 |
| E-Number (Sweden): | 1751404 |
| E-Number (Switzerland): | 205410105 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK514073D2701 |
| Instructions and Manuals: | 2CDG941061P0003 |
| RoHS Information: | 2CDK514073D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC514060D0201 |
| Instructions and Manuals: | 2CDG941061P0003 |
| |
| ETIM 6: | EC001581 - Basic module for bus system |
| ETIM 7: | EC001581 - Basic module for bus system |
| ETIM 8: | EC001581 - Basic module for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Logic items / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8537 10 91 |
| eClass: | V11.0 : 27143152 |
| Object Classification Code: | A |
