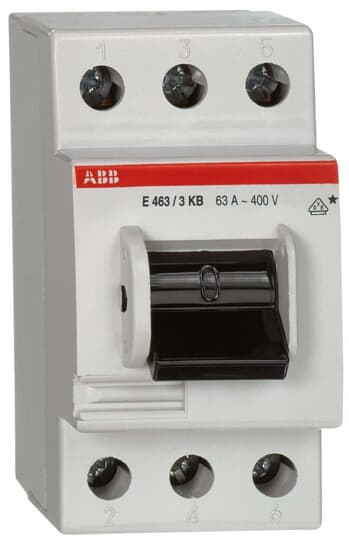

Article: E463/3KB
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | E463/3KB |
| Product ID: | 2CCE160300R0131 |
| EAN: | 7612270932528 |
| Catalog Description: | E463/3KB On-off switch |
| Long Description: | ON-off switsch E463/3KB in grey with 63 A and 3-poles 250/400 VACDCPDC according to DIN EN 60669-1, VDE 0632 Part 1 |
| |
| Standards: | EN60669-1 |
| Product Name: | On-off switch |
| Rated Voltage (Ur): | Minimum 24 V |
| Rated Operational Voltage: | 250 V |
| Rated Current (In): | 63 A |
| Rated Conditional Short-Circuit Current (Inc): | 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics): | 10 kA |
| Power Loss: | 5.4 W |
| Number of Poles: | 3 |
| Number of Contacts CO: | 0 |
| Number of Contacts NC: | 0 |
| Number of Contacts NO: | 3 |
| Accessories Available: | No |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| Environmental Information: | 2CCC441003C0201 |
| |
| Width in Number of Modular Spacings: | 2.5 |
| Product Net Width: | 44 mm |
| Product Net Height: | 85 mm |
| Product Net Depth / Length: | 70 mm |
| Product Net Weight: | 172.9 g |
| Product Net Length: | 68 mm |
| Built-In Depth (t2): | 70 mm |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 56 mm |
| Package Level 1 Height: | 77 mm |
| Package Level 1 Depth / Length: | 92 mm |
| Package Level 1 Gross Weight: | 196.2 g |
| Package Level 1 EAN: | 7612270932528 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365000 |
| Country of Origin: | Switzerland (CH) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CCY442101D0601 |
| Environmental Information: | 2CCC441003C0201 |
| Instructions and Manuals: | No document needed |
| RoHS Information: | 2CCC413008D0206 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CCC441003C0101 |
| Instructions and Manuals: | No document needed |
| |
| ETIM 6: | EC001545 - Main switch for distribution board |
| ETIM 7: | EC001545 - Main switch for distribution board |
| ETIM 8: | EC001545 - Main switch for distribution board |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 85365053 |
| Object Classification Code: | Q |
