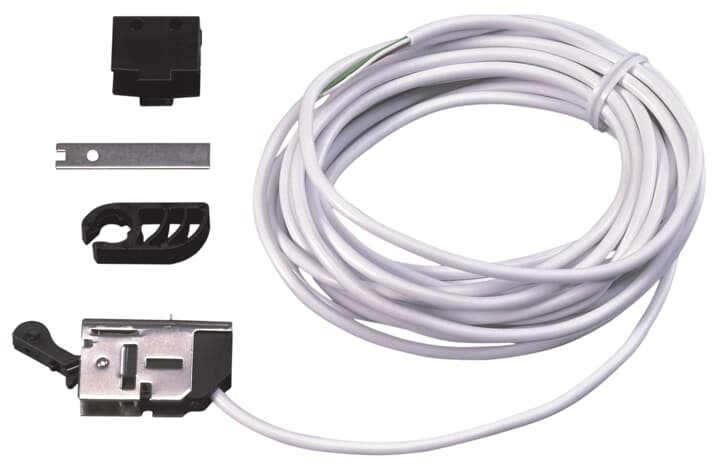

WRK/W Lock Bolt Switching Contact with Connection Cable
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | WRK/W |
| Product ID: | 2CDG250003R0011 |
| EAN: | 4016779664042 |
| Catalog Description: | WRK/W Lock Bolt Switching Contact with Connection Cable |
| Long Description: | For installation in the strike plate. Used for lock monitoring on doors. Water-tight IP 68, with 2.5 m connection cable LIYY 3 x 0.14 mm². |
| |
| Product Name: | Conventional |
| Voltage Range: | 10 ... 30 V DC |
| Maximum Switching Current: | 0.3 mA |
| Power Loss: | 0 W |
| Number of Outputs: | 0 |
| Mounting Type: | Built-in Installation |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP67 |
| RoHS Status: | Following EU Directive 2011/65/EU |
| |
| Product Net Width: | 8.25 mm |
| Product Net Height: | 43.7 mm |
| Product Net Depth / Length: | 18 mm |
| Product Net Weight: | 0.02 kg |
| |
| Package Level 1 Units: | bag 1 piece |
| Package Level 1 Width: | 20 mm |
| Package Level 1 Height: | 80 mm |
| Package Level 1 Depth / Length: | 80 mm |
| Package Level 1 Gross Weight: | 0.03 kg |
| Package Level 1 EAN: | 4016779664042 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85365011 |
| E-Number (Switzerland): | 961822103 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK540210D2701 |
| Instructions and Manuals: | 2CDG941135P0001 |
| RoHS Information: | 2CDK540210D2701 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC541069D0201 |
| 9AKK2017-109027 | |
| Instructions and Manuals: | 2CDG941135P0001 |
| |
| ETIM 6: | EC001759 - Detector for bolt switching contact |
| ETIM 7: | EC001759 - Detector for bolt switching contact |
| ETIM 8: | EC001759 - Detection contact for security technique |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / General |
| WEEE Category: | Product Not in WEEE Scope |
| CN8: | 8536 50 11 |
| eClass: | V7.0 : 27143230 |
| Object Classification Code: | A |
