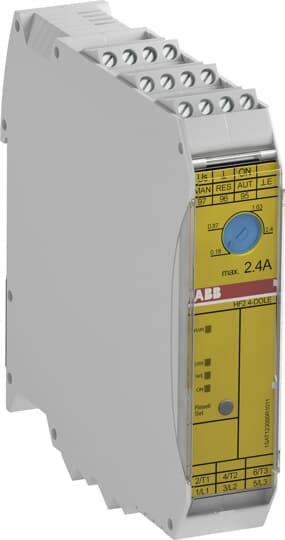

HF2.4-DOLE Electronic Compact Starter 24 VDC
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | HF2.4-DOLE-24VDC |
| Product ID: | 1SAT123000R1011 |
| EAN: | 4013614515613 |
| Catalog Description: | HF2.4-DOLE Electronic Compact Starter 24 VDC |
| Long Description: | The HF-DOLE-range is our safety range with emergency stop function. It's used for the direct-on-line start of motors and the switching of non-resistive loads. With contactor and overload relay functionalities integrated into one device, the results are faster wiring times and fewer faults. The range covers 0.6 A, 2.4 A and up to 9 A - for motors up to 3 kW – 500 V AC. The integrated electronic overload protection has a wide setting range that enables just three models to cover all requirements. Setting range of HF2.4-DOLE-24VDC is 0.18 A to 2.4 A.The control supply voltage is 24 V DC. For the control and main connection points ABB offers screw connections. Safety Integrity Level 3 in accordance with functional safety standard IEC 61508-1 and Performance Level 'e' in accordance with ISO 13849-1 are certified. Also ATEX has been certified. |
| |
| Standards: | IEC/EN 60947-1 |
| IEC/EN 60947-4-2 | |
| IEC/EN 61508 | |
| IS0 13849 | |
| UL 60947-1 | |
| UL 60947-4-2 | |
| Product Name: | Electronic Starter |
| Function: | Direct-on-line-starter with overload protection and emergency stop function |
| Reset Function: | Push Button |
| Rated Operational Voltage: | Main Circuit 500 V AC |
| Operational Voltage: | Maximum 550 V AC |
| Minimum 42 V AC | |
| Rated Insulation Voltage (Ui): | 500 V |
| Rated Control Supply Voltage (Us): | 24 V DC |
| Rated Impulse Withstand Voltage (Uimp): | Main Circuit 6 kV |
| Rated Control Circuit Voltage (Uc): | DC Operation 24 V DC |
| Rated Uninterrupted Current (Iu): | 2.4 A |
| Rated Frequency (f): | Main Circuit 50 Hz |
| Main Circuit 60 Hz | |
| Power Loss: | Maximum 3.3 W |
| Minimum 1.1 W | |
| Overload Protection: | Electronic overload protection |
| Electrical Durability: | 30000000 cycle |
| Mechanical Durability: | 10000 cycle |
| Number of Poles: | 3 |
| Number of Protected Poles: | 3 |
| Number of Phases: | 3 |
| Number of Main Contacts NO: | 3 |
| Number of Auxiliary Contacts CO (SPDT): | 1 |
| Overvoltage Category: | III |
| Tightening Torque: | Control Circuit 0.5 ... 0.6 N·m |
| Main Circuit 0.5 ... 0.6 N·m | |
| Trip Class: | class 10A |
| Delay Time (?): | Off, Maximum, Switched Off via Control Input Voltage 40 ms |
| Off, Maximum, Switched Off via Supply Voltage 500 ms | |
| Off, Typical, Switched Off via Control Input Voltage 30 ms | |
| Off, Typical, Switched Off via Supply Voltage 25 ms | |
| Off, Maximum, Switched Off with Pushbutton 3 second [unit of time] | |
| Off, Minimum, Switched Off with Pushbutton 0.5 second [unit of time] | |
| Response Time: | Phase Asymmetry 33% 120 second [unit of time] |
| Phase Asymmetry 67% 1.8 second [unit of time] | |
| Phase Failure 1.8 second [unit of time] | |
| Phase Loss Sensitive: | Yes |
| Mounting on DIN Rail: | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 |
| TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 | |
| Mounting Position: | Position 1 |
| Recommended Screw Driver: | Control Circuit M3 |
| Main Circuit M3 | |
| Connecting Capacity Main Circuit: | Flexible with Ferrule 1x 2 ... 2.5 mm² |
| Flexible 1x 2 ... 2.5 mm² | |
| Rigid 1x 2 ... 2.5 mm² | |
| Wire Stripping Length: | Control Circuit 8 mm |
| Main Circuit 8 mm | |
| Terminal Type: | Screw Terminals |
| |
| Ambient Air Temperature: | Operation -25 ... +70 °C |
| Operation Compensated -40 ... + 80 °C | |
| Degree of Protection: | Housing IP20 |
| Main Circuit Terminals IP20 | |
| Pollution Degree: | 2 |
| Maximum Operating Altitude Permissible: | Without Derating 2000 m |
| RoHS Status: | Following EU Directive 2011/65/EU |
| Technical UL/CSA | |
| Maximum Operating Voltage UL/CSA: | Main Circuit 500 V AC |
| Ampere Rating UL/CSA: | 2.4 A |
| Short-Circuit Current Rating (SCCR): | (500 V AC, 30 A Class J or CC) 100 kA |
| Horsepower Rating UL/CSA: | Nominal Switching Performance Full Load (power factor = 0.4) 1.2 Hp |
| Nominal Switching Performance Full Load (power factor = 0.8) 2.2 Hp | |
| Connecting Capacity Control Circuit UL/CSA: | Flexible with Ferrule 1x 24 ... 14 AWG |
| Flexible 16-8 AWG | |
| Solid 1x 24 ... 14 AWG | |
| Connecting Capacity Main Circuit UL/CSA: | Flexible with Ferrule 1x 24 ... 14 AWG |
| Flexible 1x 24 ... 14 AWG | |
| Solid 1x 24 ... 14 AWG | |
| Tightening Torque UL/CSA: | Control Circuit 5 ... 7 in·lb |
| Main Circuit 5 ... 7 in·lb | |
| |
| Product Net Width: | 22.5 mm |
| Product Net Height: | 99 mm |
| Product Net Depth / Length: | 114.5 mm |
| Product Net Weight: | 0.204 kg |
| |
| Package Level 1 Units: | 1 piece |
| Package Level 1 Width: | 150 mm |
| Package Level 1 Height: | 34 mm |
| Package Level 1 Depth / Length: | 115 mm |
| Package Level 1 Gross Weight: | 0.304 kg |
| Package Level 1 EAN: | 4013614515613 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85371098 |
| E-Number (Finland): | 3707544 |
| E-Number (Sweden): | 3210492 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| ATEX Certificate: | 1SAA918002-3901 |
| cUL Certificate: | cUL E191658 |
| Declaration of Conformity - CCC: | 2020970304003456 |
| Declaration of Conformity - CE: | 1SAD038501-0194 |
| Declaration of Conformity - UKCA: | 1SAD938500-1194 |
| EAC Certificate: | 1SAA918001-2701 |
| Instructions and Manuals: | 2CDC130014M0401 |
| 2CDC130009M0401 | |
| 2CDC130013M0401 | |
| 2CDC130007M0401 | |
| 2CDC130015M0401 | |
| RoHS Information: | 1SAD038501-0194 |
| Popular Downloads | |
| Instructions and Manuals: | 2CDC130014M0401 |
| 2CDC130009M0401 | |
| 2CDC130013M0401 | |
| 2CDC130007M0401 | |
| 2CDC130015M0401 | |
| Dimension Diagram: | 1SAT100401F0001 |
| |
| ETIM 6: | EC001037 - Motor starter/Motor starter combination |
| ETIM 7: | EC001037 - Motor starter/Motor starter combination |
| ETIM 8: | EC001037 - Motor starter/Motor starter combination |
| EPLAN Catalog Tree: | Electrical engineering / Relays, contactors / General |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Business |
| CN8: | 8537 10 98 |
| UNSPSC: | 39121521 |
| eClass: | V11.0 : 27370905 |
| IDEA Granular Category Code (IGCC): | 4727 >> Motor starter controls |
| Safety Information | |
| Diagnostic Coverage: | 98.91 % |
| Mean Time to Dangerous Failure (MTTFd): | Motor Protection 447 year |
| Safe Shutdown 518 year | |
| Performance Level (PL): | Up to e |
| Safety Category: | 3 |
| Safety Integrity Level (SIL): | 3 |
