JSD-HD4-320H26 Safety Control Devices
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | JSD-HD4-320H26 |
| Product ID: | 2TLA920077R0000 |
| EAN: | 4013614500701 |
| Catalog Description: | JSD-HD4-320H26 Safety Control Devices |

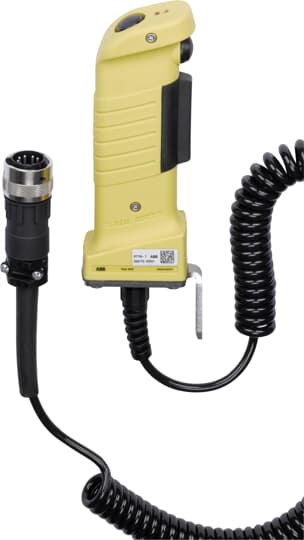

| Long Description: | JSD-HD4-320H26 3-pos.enabling device 2 add. switche, with LED, spiral cable 2/10m with Cannon female connector |
| |
| Product Name: | Safety Control Devices |
| Function: | Three-position device used to allow a limited movement of the machine when the operator is in the dangerous area. |
| Sub-Function: | 1 front and 1 top auxiliary buttons |
| Status Indicator: | Yes |
| Safety Information | |
| Performance Level (PL): | Up to e |
| B10d Value: | 2 million operations to middle position |
| 968 000 operations to bottom position | |
| |
| Communication Interface: | Contacts |
| Connection Configuration: | Spiral Cable |
| Cannon Connector | |
| Number of Contacts NO: | 4 |
| Maximum Switching Current: | Main Circuit 20 mA |
| Maximum Switching Voltage: | Main Circuit 30 V |
| Rated Operational Current DC-12 (Ie): | (24 V) 0.02 A |
| Rated Operational Voltage: | 24 V DC |
| |
| Degree of Protection: | IP65 |
| Ambient Air Temperature: | Operation -10 ... +50 °C |
| Material: | Rubber: NBR; Handle: Polyamid and Nory |
| |
| Product Net Width: | 58 mm |
| Product Net Depth / Length: | 34 mm |
| Product Net Height: | 202 mm |
| Product Net Weight: | 1.1 kg |
| |
| Minimum Order Quantity: | 1 piece |
| Country of Origin: | Germany (DE) |
| Customs Tariff Number: | 85365080 |
| |
| ETIM 6: | EC002571 - Agreement switch |
| ETIM 7: | EC002571 - Agreement switch |
| eClass: | V11.0 : 27371238 |
