Article: ER/U1.1
We find the right product
for you
Official reseller
Expert engineering support
Configuration
General Information | |
| Extended Product Type: | ER/U1.1 |
| Product ID: | GHQ6310044R0111 |
| EAN: | 4016779497251 |

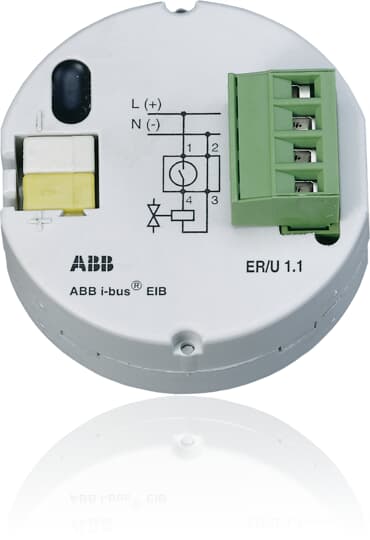

| Catalog Description: | ER/U1.1 Electronic Relay, 1-fold, FM |
| Long Description: | The device is used in combination with the universal interface US/U x.2 and a room thermostat to control the temperature in individual rooms. The thermal valve drives of the radiator valves are operated both noisefree and with a low rate of wear. |
| |
| Product Name: | Heating, Ventilation and Air Conditioning |
| Voltage Range: | 24 ... 230 V AC/DC |
| Maximum Switching Current: | 1.2 mA |
| Output Current Maximum (Iout): | 0.5 A |
| Power Loss: | 0 W |
| Number of Outputs: | 1 |
| Number of Digital Inputs: | 1 |
| Manipulated Variable: | Switching |
| Mounting Type: | Flush Mounted |
| Manual Operation: | No |
| Number of Batteries: | 0 |
| |
| Degree of Protection: | IP20 |
| RoHS Status: | Following EU Directive 2002/95/EC August 18, 2005 and amendment |
| |
| Product Net Width: | 20 mm |
| Product Net Height: | 54 mm |
| Product Net Depth / Length: | 54 mm |
| Product Net Weight: | 0.066 kg |
| |
| Package Level 1 Units: | box 1 piece |
| Package Level 1 Width: | 92 mm |
| Package Level 1 Height: | 65 mm |
| Package Level 1 Depth / Length: | 23 mm |
| Package Level 1 Gross Weight: | 0.08 kg |
| Package Level 1 EAN: | 4016779497251 |
| |
| Minimum Order Quantity: | 1 piece |
| Customs Tariff Number: | 85389091 |
| E-Number (Finland): | 2815124 |
| E-Number (Sweden): | 1751050 |
| E-Number (Switzerland): | 405660105 |
| Country of Origin: | Germany (DE) |
| Selling Unit of Measure: | piece |
| |
| Declaration of Conformity - CE: | 2CDK508115D2701 |
| Instructions and Manuals: | GHQ6307046P0002 |
| RoHS Information: | 2CDG510009-0010 |
| Popular Downloads | |
| Data Sheet, Technical Information: | 2CDC508012D0201 |
| 9AKK2017-107246 | |
| Instructions and Manuals: | GHQ6307046P0002 |
| |
| ETIM 6: | EC001586 - Heating actuator for bus system |
| ETIM 7: | EC001586 - Heating actuator for bus system |
| ETIM 8: | EC001586 - Heating actuator for bus system |
| EPLAN Catalog Tree: | Electrical engineering / Sensor, switch, and pushbutton / Switch , pushbutton |
| WEEE Category: | 5. Small Equipment (No External Dimension More Than 50 cm) |
| WEEE B2C / B2B: | Business To Consumer |
| CN8: | 8538 90 91 |
| eClass: | V11.0 : 27143147 |
| Object Classification Code: | A |
